GN 608.5 Indexing Plungers with Stainless Steel Plunger, plunger pin Stainless Steel

Show filter

d₁ Plunger -0,02/-0,05 Bore H7	l₁	b₁	b₂	d₂ -0,02/-0,1	d₃	d₄	d₅	k	l₂	l₃ -0,15	l₄	l₅ Stroke	Spring load in N ≈ Initial	end	Axial load in N

6	6	40	18	10	25	4,3	8,3	30	37	2,5	4,5	6	9	25	400
6	14	40	18	10	25	4,3	8,3	30	45	2,5	4,5	6	9	25	400
8	8	46	20	12	31	5,3	10,4	34	44	2,5	5,5	8	13	26	500
8	18	46	20	12	31	5,3	10,4	34	54	2,5	5,5	8	13	26	500

Filter combination produces no result.

Specification

Guide
Zinc die casting
Zinc plated, blue passivated

Plunger pin

Single components
Stainless steel

Knob
Plastic (Polyamide PA)

RoHS

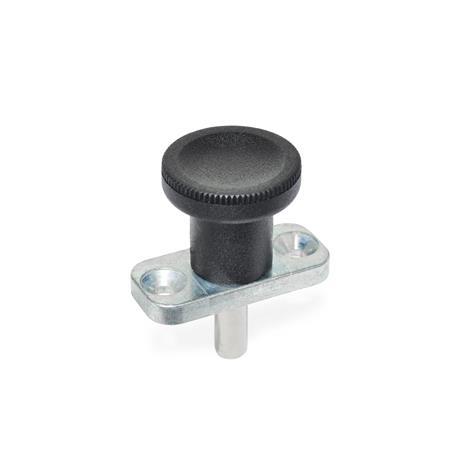

Stainless steel indexing plungers GN 608.5 are distinguished for their small dimensions.
