with Adjustable Torque

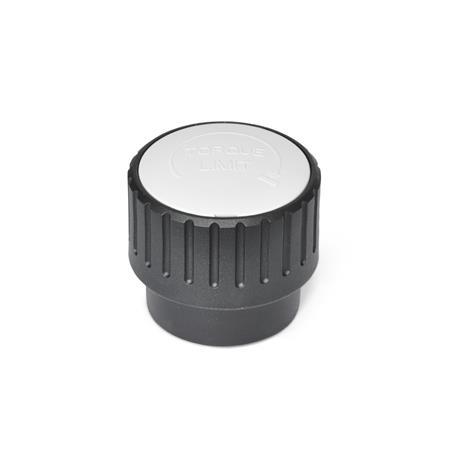

GN 5910 Torque Limiting Knurled Knobs

Torque Limiting Knurled Knobs GN 5910 thumbnail

ELESA original design MZD-A / -p Info

Torque Limiting Knurled Knobs GN 5910 sketch

Show filter

d₁	d₂	d₄	d₅	h₁	h₂	h₃	t	max. torque ±10% in Nm

47	M 6	9	39	44	15	0,3	12	1
47	M 8	12	39	44	15	0,3	12	1

Filter combination produces no result.

Specification

Plastic
Technopolymer (Polyamide PA)

Glass fiber reinforced
Temperature resistant up to 80 °C
Black, matte finishSW

Bushing
Steel, blackened

Color of the cover cap
gray, RAL 7035

Application video GN 5910

Plastic Characteristics

RoHS

Information

Torque limiting knurled knobs GN 5910 are used when the manually applied torque is to be limited. The torque limit can be set between 0.2 Nm and 1 Nm.

When turned clockwise, the torque mechanical system of the knurled knob triggers an „over-engagement“ as soon as the specified torque is reached. When tightening, this will ensure that the maximum permissible torque is not exceeded. When turned counterclockwise, the mechanism locks such that the torque necessary for releasing is transferred.

Endurance tests have shown that the torque does not change even after up to 60,000 tightening cycles.
