Straight Version

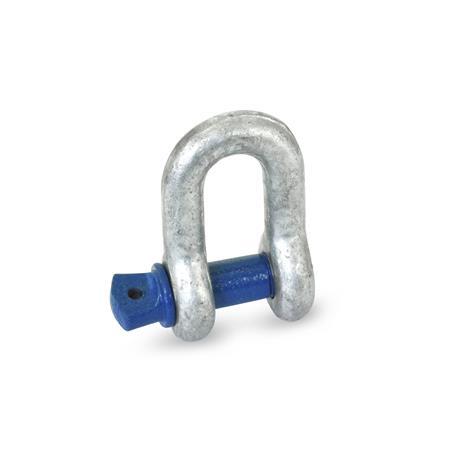

GN 584 Shackles

Type

A	With stud bolt
B	Bolt with nut and split pin

Show filter

d₁ Nominal size	in inch	b ±1	d₂ ±0,5	d₃ UNC-thread	d₄	h	Nominal load (WLL)

6	1/4	12	8	5/16 x 18*	17	22	0,50 t [5,0 kN]
8	5/16	13	10	3/8 x 16*	21	26	0,75 t [7,5 kN]
10	3/8	16	12	7/16 x 14*	26	31	1,00 t [10,0 kN]
11	7/16	18	14	1/2 x 13*	28	36	1,50 t [15,0 kN]
13	1/2	21	16	5/8 x 11*	30	41	2,00 t [20,0 kN]
16	5/8	27	19	3/4 x 10*	42	51	3,25 t [32,5 kN]
19	3/4	32	22	7/8 x 9*	48	60	4,75 t [47,5 kN]
22	7/8	36	25	1 x 8*	57	71	6,50 t [65,0 kN]
25	1	43	28	1 1/8 x 7*	62	81	8,50 t [85,0 kN]

Filter combination produces no result.

* in general, the bolts and screws are threaded as specified. Variances are possible, however.

Specification

Ring bracket

Heat-treated steel, die-forged
Hot-dip galvanised

Bolt

Heat-treated steel, die-forged
Galvanic zinc plated, lacquered

RoHS

Information

High-strength, straight shackles GN 584 are made in analogy with the US Federal Specification RR-C-271 and feature sixfold safety standards, which means that the minimum failure load is at least six times greater than the value of the nominal load (WLL).

The rated size and the nominal load (WLL) are drop-forged into the shackle which makes it easier to select the proper sling gear. In general, the nominal load must not be exceeded.

The designs with nut and split pin (Type B) are normally recommended for permanent connections. The bolts are allowed to rotate, and the nuts are secured against inadvertent loosening with a split pin.

The operating instruction contains further guidelines and is included with every shackle (see also at www.ganternorm.com/en/service).
