Material No. AISI 303

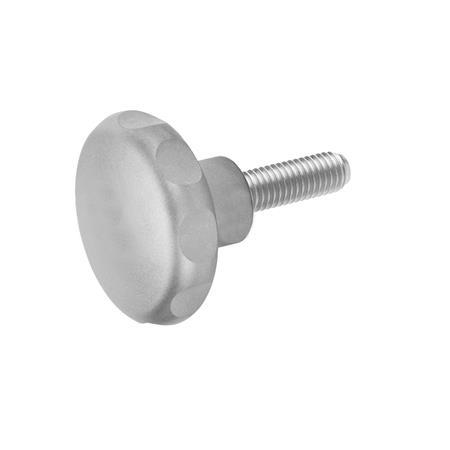

GN 5335 Stainless Steel Star Knobs with Threaded Stud
| d1 | d2 | Length l | d4 | h1 | h2 | ||
|---|---|---|---|---|---|---|---|
| 40 | M 8 | 16 | 20 | 25 | 18 | 30,5 | 15 |
| 50 | M 10 | 20 | 25 | 30 | 21 | 34 | 17 |
| 60 | M 12 | 25 | 30 | 40 | 25 | 39 | 18 |
Filter combination produces no result.
Specification
Information
Stainless steel star knobs with threaded stud GN 5335 are a special development intended for the food processing machinery industry. The smooth and enclosed areas as well as the large corner radii comply with the requirements of hygiene standards.
| How to order |
| ||||||
GN 5335-40-M8-20 |
RoHS compliant:
-
-
Weight:
-
-
