Aluminum, with Needle Bearings

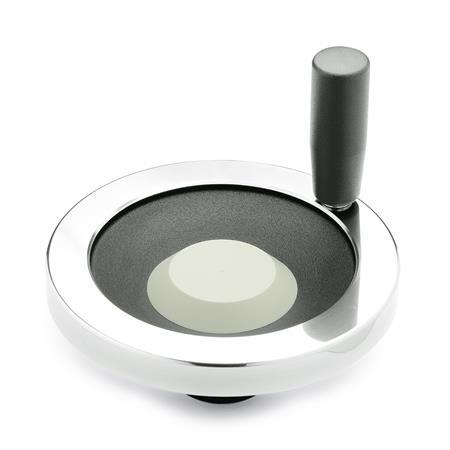

GN 321.6 Safety Handwheels, rim polished

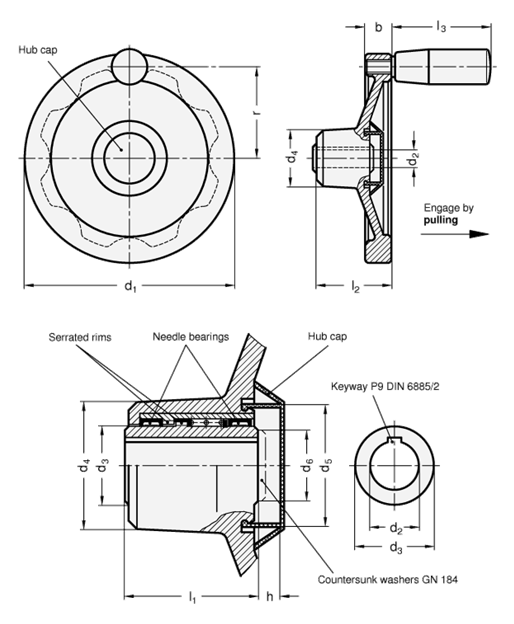

Type
| A | Without handle |
| D | With revolving handle |
| d1 | d2 H7 Bore with keyway | d3 | d4 | d5 | d6 max. | b | h | l1 | l2 | l3 | r | Ø Handle | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 140 | K 12 | K 14 | K 16 | 24 | 42 | 40 | 23 | 16,5 | 7 | 45 | 58 | 67,5 | 61 | 23 |
| 160 | K 12 | K 14 | K 16 | 24 | 42 | 40 | 23 | 18 | 7 | 45 | 58 | 82,5 | 71 | 26 |
Filter combination produces no result.
Specification
Handwheel body
Aluminum
Coupling attachments
Cover cap
Plastic, light gray
Revolving handles GN 598
RoHS
Aluminum
- Rim turned and polished
- Unmachined surface
Powder coated
Black, textured finish
Coupling attachments
- Steel, hardened
- Glide surfaces honed
Cover cap
Plastic, light gray
Revolving handles GN 598
- Steel, powder coated
Black, textured finish - Spindle steel
Zinc plated, blue passivated
RoHS
Information
The cover cap protects the bearing from dust and dirt while covering fastening elements such as countersunk washers GN 184.
For fastening of the cover cap, the handwheel possesses a groove that is gripped by the elastic segments of the cap.
The cover cap is pressed on by hand and can be pried out with a screwdriver at the indented point.
The needle bearings are greased during assembly, providing ample permanent lubrication.
| How to order |
| ||||||
GN 321.6-160-K14-D |
