for Positioning Indicators GN 000.8 / GN 000.3

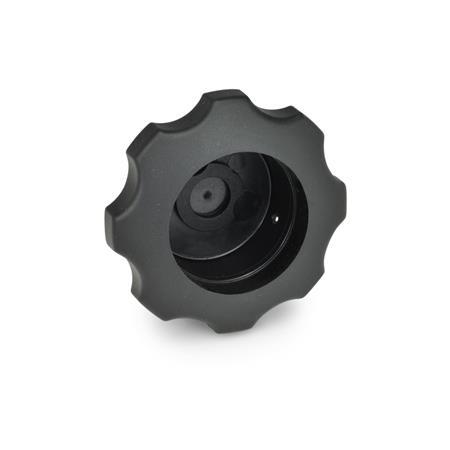

GN 577.8 Handwheels, plastic, bushing Stainless Steel
ELESA original design VHT. GXX
| d1 | d2 H7 Bore | d3 | d4 | d5 | b | l1 | l2 | l3 | l4 | for position indicators GN 000.8 Size | GN 000.3 Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 85 | B 10 | 18 | 24 | 58 | 17,5 | 17,5 | 51 | 6 | 18 | 42 | - |
| 110 | B 12 | 22 | 28 | 77 | 20 | 22 | 58 | 6 | 18 | 60 | 60 |
Filter combination produces no result.
Specification
Plastic
Technoplymer (Polyamide)
Bushing
Stainless steelNI AISI 303
Grub screw DIN 916
with internal hexagon and serrated point
Stainless steel AISI 304
RoHS
Technoplymer (Polyamide)
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finish
Bushing
Stainless steelNI AISI 303
Grub screw DIN 916
with internal hexagon and serrated point
Stainless steel AISI 304
RoHS
Accessory
Position indicators GN 000.8 / GN 000.3 are to be ordered separately.Information
Handwheels GN 577.8 have a recess in the hub to accept a position indicator GN 000.8 / GN 000.3.
For applications where these handwheels are by choice being used without the position indicators, a hub cap is available to cover the empty recess.
see also...
| How to order |
| ||||||
GN 577.8-110-B12-NI |
