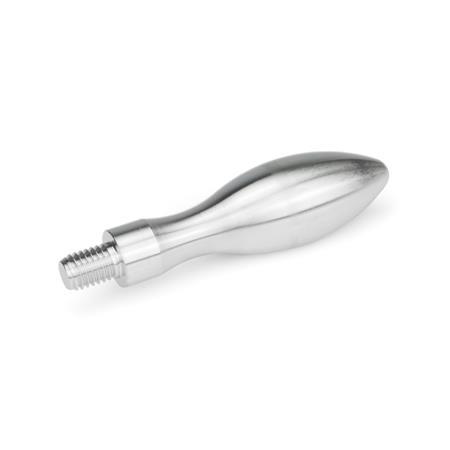

DIN 39 Fixed Stainless Steel Handles
Type
| E | With threaded rod |
| d1 | d3 | d4 h13 | l1 ≈ | l2 | l3 |
|---|---|---|---|---|---|
| 16 | M 6 | 10 | 50 | 11 | 7 |
| 20 | M 8 | 13 | 64 | 13 | 8 |
| 25 | M 10 | 16 | 80 | 14 | 10 |
Filter combination produces no result.
Specification
Information
On the official DIN standard sheet you can find the additional sizes 10 and 13.
For reasons of hygiene, no internal hexagon is used in type A4.
| How to order |
| ||||||
DIN 39-A4-20-E |
