GN 730 Ledge Handles

Show filter

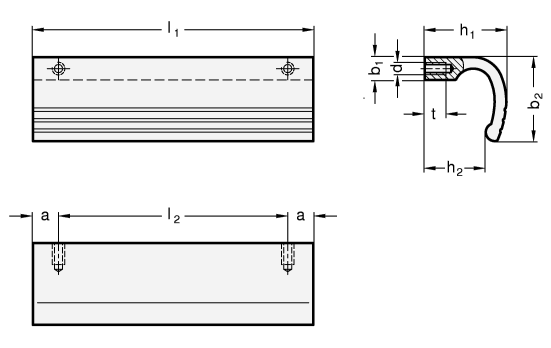

l₁ ±0,25	d	a	b₁	b₂	h₁	h₂	l₂ ±0,2	t min.

110	M 6	10	9,5	33	32	24	90	9
125	M 6	10	9,5	33	32	24	105	9
140	M 6	10	9,5	33	32	24	120	9

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Anodized, natural colorEL
Plain, tumbledBL

RoHS

A typical field of application for ledge handles GN 730 is on hinged protective doors on machinery and installations.

Manufactured from aluminum extrusion allows special lengths and material sold by the meter to be realised easily.

How to order

1	l₁
2	Finish

GN 730-125-SW

RoHS compliant: Info

Weight:

PDF not available
