GN 303.1 Adjustable Hand Levers

Adjustable Hand Levers GN 303.1 thumbnail

Show filter

l₁	d₁		l₂								d₃	d₄	h₁	h₂	h₃	h₄ Stroke

30	M 3	-	6	8	10	12	16	-	-	-	10	13	26,5	4	31	3,5
30	M 4	-	12	16	20	25	32	-	-	-	10	13	26,5	4	31	3,5
30	M 5	M 6	12	16	20	25	32	40	50	-	10	13	26,5	4	31	3,5
45	M 4	-	12	16	20	25	32	-	-	-	10	13	26,5	4	35	3,5
45	M 5	M 6	12	16	20	25	32	40	50	-	10	13	26,5	4	35	3,5
63	M 6	M 8	12	16	20	25	32	40	50	63	13,5	17,5	32,5	6,5	45	4
63	M 10	-	20	25	32	40	50	63	-	-	13,5	17,5	32,5	6,5	45	4
78	M 8	M 10	16	20	25	32	40	50	63	80	16	21	37,5	8	55	4

Filter combination produces no result.

Specification

Handle
Zinc die casting

Powder coated
Black, RAL 9005, textured finishSW

Releasing button
Plastic
Black, RAL 9005S

Orange, RAL 2004O

Gray, RAL 7035G

Threaded stud
Stainless steel AISI 303

Stainless Steel Characteristics

RoHS

On request

Handle in GN 300 colors

Information

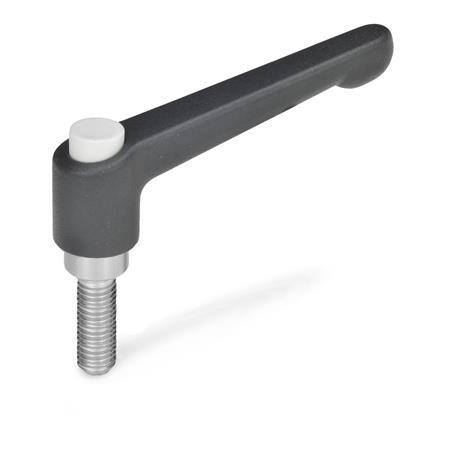

Adjustable hand levers GN 303.1 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be dis-engaged.

The releasing button is a design element that offers an easy disengagement. Its use is limited to applications where dismantling of the lever for installation is not required.

How to order
