Steel, Blackened

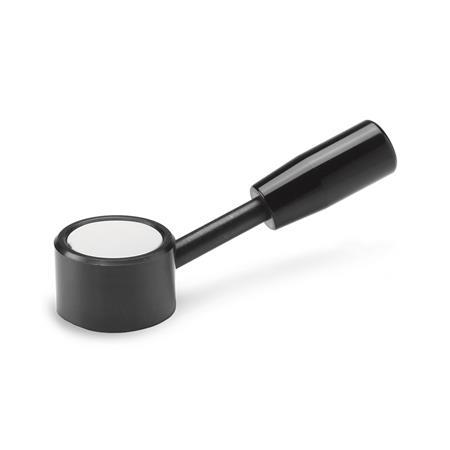

GN 750 Control Levers
Bore code
| B | Without keyway |
| K | With keyway |
| V | With square |
Type
| M | Cover with indicator point |
| N | Cover plain |
| d1 | d2 Bore H7 Square H11 | d3 | d4 | d5 | d6 | h1 | h2 | h3 | h4 ≈ | Length l | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 10 | - | 25 | 23 | 18 | 8 | 21 | 15 | 4,2 | 43 | 84 |
| 40 | 10 | 12 | 32 | 30 | 21 | 9 | 25 | 19 | 4,0 | 54 | 106 |
| 50 | 14 | 16 | 40 | 37,5 | 23 | 11 | 28 | 22 | 3,8 | 63 | 130 |
Filter combination produces no result.
Specification
Steel
Blackened
Cover
Plastic, light gray
Cross holes GN 110
Keyway P9 DIN 6885 Page 1
Squares DIN 79
ISO Fundamental Tolerances
Plastic Characteristics
RoHS
Blackened
Cover
Plastic, light gray
Cross holes GN 110
Keyway P9 DIN 6885 Page 1
Squares DIN 79
ISO Fundamental Tolerances
Plastic Characteristics
RoHS
On request
Control lever versions of the assembly examples
Information
The cover hides fasteners (see assembly instructions) as well as protruding or recessed shafts and provides a printing facility for any symbol or logo.
On assembly, the cover is pushed in by hand and can be removed with a screw driver via a suitable slot.
see also...
| How to order |
| ||||||||
GN 750-32-B10-N |
RoHS compliant:
-
-
Weight:
-
-
