with Bolt
GN 616 Stainless Steel Spring Plungers,
Type
| SN | Bolt stainless steel, standard spring load |
| KN | Bolt plastic, standard spring load |

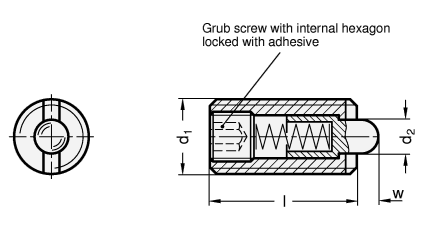

| d1 Type SN | Type KN | d2 | Length l +0,2 | w Compression | Spring load in N ≈ Standard (Type SN / KN) Initial | End | Code No. Screwdriver |
|---|---|---|---|---|---|---|---|
| M 3 | - | 1 | 12 | 1 | 2 | 4 | GN 611.5-M3 |
| M 4 | M 4 | 1,5 | 15 | 1,5 | 4,5 | 16 | GN 611.5-M4 |
| M 5 | M 5 | 2,4 | 18 | 2,3 | 6 | 19 | GN 611.5-M5 |
| M 6 | M 6 | 2,7 | 20 | 2,5 | 6 | 19 | GN 611.5-M6 |
| M 8 | M 8 | 3,5 | 22 | 3 | 10 | 39 | GN 611.5-M8 |
| M 10 | M 10 | 4 | 22 | 3 | 10 | 39 | GN 611.5-M10 |
| M 12 | M 12 | 6 | 28 | 4 | 12 | 53 | GN 611.5-M12 |
| M 16 | M 16 | 7,5 | 32 | 5 | 45 | 100 | GN 611.5-M16 |
| M 20 | - | 10 | 40 | 7 | 52 | 125 | GN 611.5-M20 |
Filter combination produces no result.
Specification
Housing
Stainless steel AISI 303
Type SN
Bolt
Stainless steel AISI 303
Nitrided
Type KN
Bolt
Plastic (Polyacetal POM)
Temperature resistant up to 50 °C
Pressure spring
Stainless steel AISI 631
RoHS
Stainless steel AISI 303
Type SN
Bolt
Stainless steel AISI 303
Nitrided
Type KN
Bolt
Plastic (Polyacetal POM)
Temperature resistant up to 50 °C
Pressure spring
Stainless steel AISI 631
RoHS
Accessory
Screwdrivers GN 611.5(Code no. see table)
On request
With thread locking PFB / MVK
Information
Stainless steel spring plungers GN 616 are used as detents as well as for push-on and push-off applications and ejectors.
The slot on the plunger side is provided for blind hole applications. A special screw driver GN 611.5 is available (see table).
| How to order |
| ||||
GN 616-M12-KN |
