Disk-Shaped, with Bore

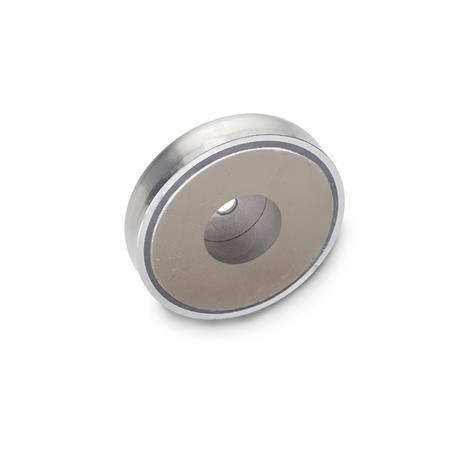

GN 50.45 Stainless Steel Retaining Magnets

Stainless Steel Retaining Magnets GN 50.45 thumbnail

Stainless Steel Retaining Magnets GN 50.45 sketch

Show filter

d₁	Tolerances HF	SC	h	Tolerances HF	SC	d₂ HF	d₃ HF	SC	d₄	d₅ HF	SC	t HF	SC	Nominal magnetic forces in N HF	SC

16	-	±0,1	4,5	-	±0,1	-	-	3,5	-	-	6	-	3	-	41
20	±0,1	±0,1	6	+0,2/-0,1	±0,1	4,3	-	4,5	9,5	-	8	-	3,5	22	60
25	±0,1	±0,1	7	+0,3/-0,2	±0,2	5,5	-	4,5	11,5	-	8	-	4	29	80
32	±0,1	±0,1	7	+0,3/-0,2	±0,2	5,5	-	5,5	11,5	-	11	-	4	58	200
40	+0,2/-0,1	±0,1	8	+0,4/-0,2	±0,2	5,5	-	5,5	12,5	-	10,5	-	4	72	420
50	+0,2/-0,1	-	10	+0,5/-0,2	-	-	8,5	-	-	22	-	8,5	-	145	-
63	+0,3/-0,1	-	14	+0,5/-0,2	-	-	6,5	-	-	24	-	12	-	230	-

Filter combination produces no result.

Specification

Housing
Stainless steel

Materials of the magnet:

Hard ferriteHF
Temperature resistant up to 220 °C
SmCoSC
Samarium, cobalt
Temperature resistant up to 350 °C

RoHS

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

Information

Stainless steel retaining magnets GN 50.45 are combined with a stainless steel housing and a plastic ring / insulation ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.
