with and without Lock

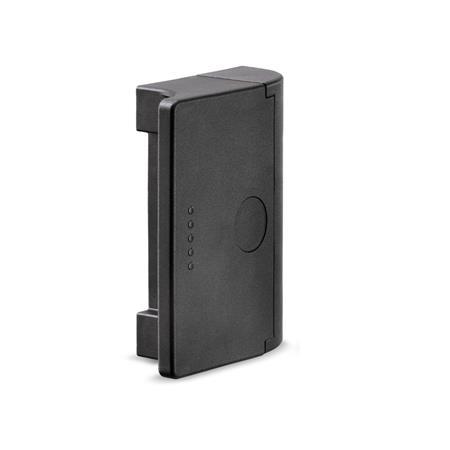

GN 932 Ledge Handles with Locking
ELESA original design ESC
Type
| S | Not lockable, only snap-in lock |
| SCE | Lockable (keyed alike) |
| SCU | Lockable (keyed differently) |
| l1 | d | h1 | h2 | h3 | l2 | l3 | l4 | l5 | l6 | m1 | m2 | m3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 | 6 | 31 | 7 | 5 | 72,5 | 29 | 25 | 7 | 25 | 72 | 13,5 | 40,5 |
Filter combination produces no result.
Specification
Plastic technopolymer
Lock mechanism
Zinc die casting
Key
Brass, nickel plated
with handle in plastic
RoHS
- Handle part (Polyamide PA)
- Locking part (Polyacetal POM)
- Temperature resistant up to 60 °C
- Black, matte finish
Lock mechanism
Zinc die casting
Key
Brass, nickel plated
with handle in plastic
RoHS
Information
Ledge handles with locking GN 932 are very easy to mount. Handle and lock (snap-type lock or key-type lock) are integrated in a single element. Also, the handle and therefore the door is side mounted in the locking section.
The key is turned by 180° and may be inserted or pulled off in both end positions.
Two keys are supplied with the designs with lock (Type SCE and Type SCU).
see also...
| How to order |
| ||||
GN 932-90-S |
