GN 587.1 Load Rings

A	Without retaining spring
F	With retaining spring

Show filter

b	h₁	h₂	h₃	h₄	k₁	k₂	l₁	l₂	l₃	Nominal load in t (WLL)

66	79	65	40	25	14	38	33	33	71	1,5
77	91	75	47	28	16	45	40	38	80	2,5
87	101	83	52	31	16	51	46	42	91	4,0
115	141	117	73	44	22	67	60	61	126,5	6,7
129	153	126	71	55	26	67	60	75	135,5	10,0

Filter combination produces no result.

Specification

Ring bracket
Steel, German Material No. 1.6541

Weld-on block
Steel S355 J2 + N (ST52-3N)

Retaining spring
Spring steel tape
Rustproof

RoHS

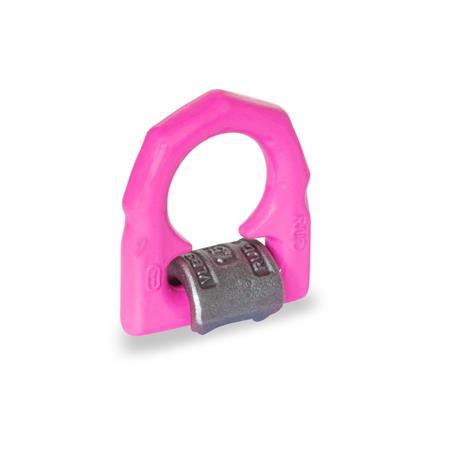

Load rings GN 587.1 for welding are designed for rapid mounting.

They provide high dynamic and static strength and can be load from any direction with approved safety (safety factor 4) for all loading directions.

The steel tape (Type F) holds the ring in any position and dampens any noise caused by vibrations. All parts are undetachably connected.

The two support lugs improve the bearing of hooks and enhance the support effect in the event of oblique suspension rings.

Load rings GN 587.1 comply with Mechanical Engineering Directive 2006 / 42 / EG.

The operating instruction contains further guidelines and is included with every load ring (see also at www.ganternorm.com/en/service).

RoHS compliant: Info

Weight:
