with Ball Pin

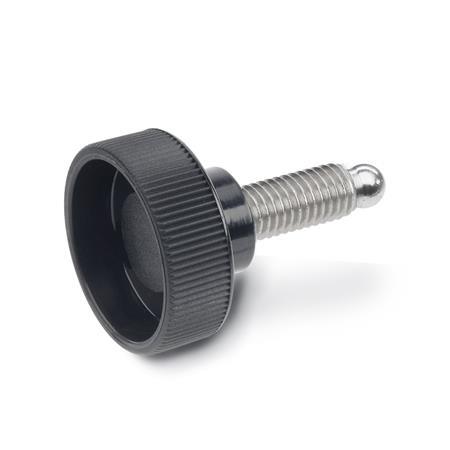

GN 421.11 Knurled Screws, plastic, threaded stud Stainless Steel

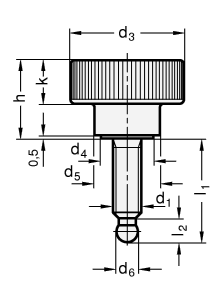

| d1 | l1 | d3 | d4 | d5 | d6 +0,05 | h | k | l2 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| M 6 | 25 | 35 | 45 | 24 | 12 | 14 | 4,5 | 16,5 | 9,5 | 5,1 |
| M 8 | 30 | 40 | 50 | 30 | 14 | 16 | 6,1 | 19,5 | 11 | 6,2 |
| M 10 | 35 | 45 | 55 | 36 | 16 | 18 | 7,8 | 22,5 | 12,5 | 7,3 |
Filter combination produces no result.
Specification
Knurled thumb screw GN 421
Plastic
Technopolymer (Polyamide PA)
Black, shiny finish
Threaded stud
Stainless steel AISI 303
RoHS
Plastic
Technopolymer (Polyamide PA)
Black, shiny finish
Threaded stud
Stainless steel AISI 303
RoHS
Information
Knurled screws GN 421.11 have a ball pin whose diameter is smaller than the core diameter of the thread.
| How to order |
| ||||
GN 421.11-M8-30 |
