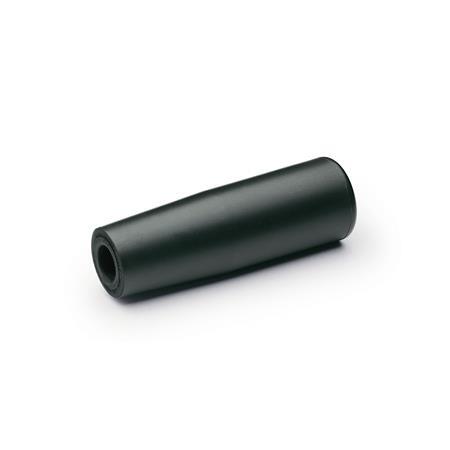

GN 519.6 Softline Cylindrical Knobs, Plastic, with soft, antislip contact surface
ELESA original design I.680 SOFT
| d1 +0,5 | d2 | d3 | l1 | l2 min. | l3 |
|---|---|---|---|---|---|
| 24 | M 8 | 20,5 | 65 | 30 | 7 |
| 24 | M 10 | 20,5 | 65 | 40 | 7 |
| 26 | M 8 | 21 | 80 | 40 | 7 |
| 26 | M 10 | 21 | 80 | 55 | 7 |
| 26 | M 12 | 21 | 80 | 55 | 7 |
| 28 | M 10 | 22 | 90 | 56 | 7 |
| 28 | M 12 | 22 | 90 | 58 | 10 |
Filter combination produces no result.
Specification
Base body
Plastic
Technopolymer (Polypropylen PP)
Softline coating
RoHS
Plastic
Technopolymer (Polypropylen PP)
Softline coating
- Elastomer (TPE) 70 Shore A
- Chemically bonded with base body
- FDA compliant plastic granulate
- Temperature resistant up to 80 °C
- Black, matte finish
RoHS
Information
The Softline coating makes the cylindrical knobs GN 519.6 particularly user-friendly and ergonomic.
The soft, antislip contact area improves the contact both in hot (hand perspiration) and in dry ambient conditions, in the event of oily surfaces and even high or low temperatures.
see also...
| How to order |
| ||||
GN 519.6-26-M10 |
