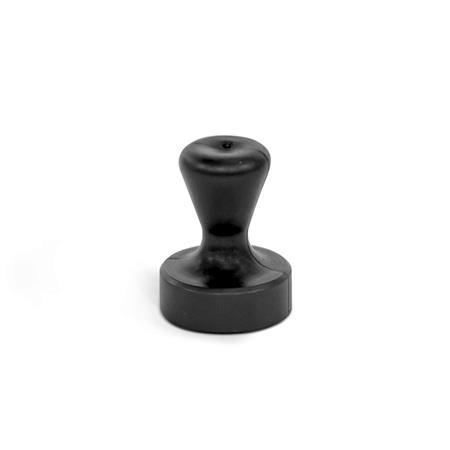

Disk-Shaped, with Handle, with Plastic Housing
GN 53.3 Magnets
Type
| A | Without eyelet |
| B | With eyelet |
| d1 | b | d2 | d3 | h1 | h2 | Nominal magnetic force in N |
|---|---|---|---|---|---|---|
| 17 | 6 | 12 | 4 | 22,5 | 6 | 35 |
Specification
Magnet material
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Housing
Plastic
Countersunk screw
Stainless steel
RoHS
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Housing
Plastic
- White, RAL 9003WS
- Gray, RAL 7040GR
- Black, RAL 9004SW
- Red, RAL 3031RT
Countersunk screw
Stainless steel
RoHS
Accessory
Holding Disks GN 70Adhesive Disks GN 70.1
Stainless Steel Retaining Cables GN 111.2
Spiral Retaining Cables GN 111.4
On request
Other colors
Information
Magnets GN 53.3 work in combination with the ergonomic plastic handle as a system for holding documents, templates, drawings etc. that are used in technical environments.
The neodymium magnet keeps the required contact diameter small while also supplying a high retaining force.
Type B with eyelet also offers the ability to protect the magnet from being lost with a retaining cable.
see also...
| How to order |
| ||||||||
GN 53.3-ND-17-A-GR |
