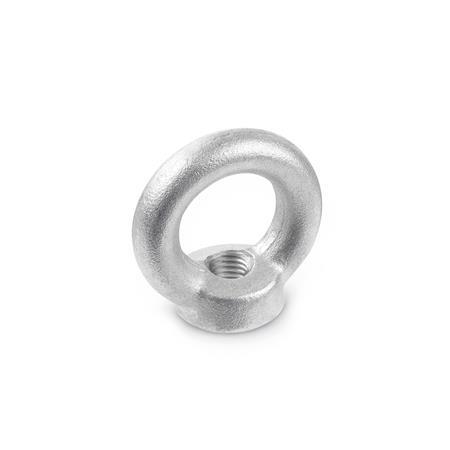

DIN 582 Stainless Steel Lifting Eye Nuts

Show filter

d₁	d₂	d₃	d₄	e	h	k	m	F₁ max. in N	F₂ max. in N	F₃ max. in N

M 10	25	45	25	10	45	10	12	2300	1700	1150
M 12	30	54	30	11	53	12	14	3400	2400	1700
M 16	35	63	35	13	62	14	16	7000	5000	3500
M 20	40	72	40	16	71	16	19	12000	8600	6000
M 24	50	90	50	20	90	20	24	18000	12900	9000

Filter combination produces no result.

Specification

Stainless steelA4

RoHS

The following guidelines of the stainless steel lifting eye nuts DIN 582 have to be observed in addition to the load values given in the above table.

The eye nut must be of fully screwd in to achieve a perfect contact between the two mating faces.

Both threads must be of a equal length and the base material of equal strength to that of the nut.

Operating instructions with more details and specifications are included with every delivery (see also www.ganternorm.com/en/service).

The official DIN standard sheet specifies the additional sizes M42, M48, M56, M64, M72 x 6, M80 x 6 und M100 x 6.

How to order

1	d₁
2	Material

DIN 582-M24-A4

RoHS compliant: Info

Weight:
