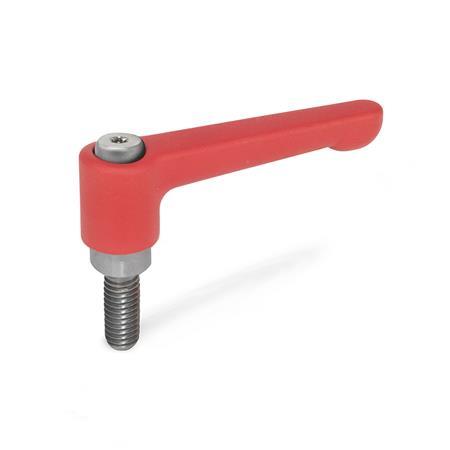

GN 302.1 Flat Adjustable Hand Levers

Flat Adjustable Hand Levers GN 302.1 thumbnail

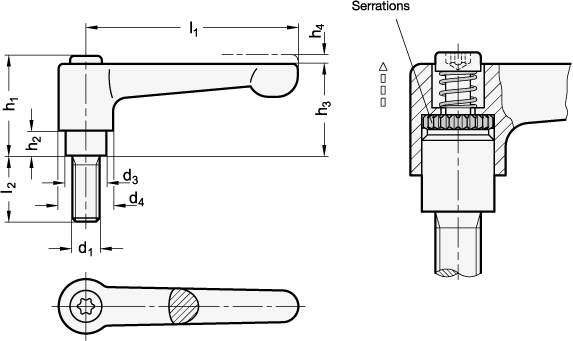

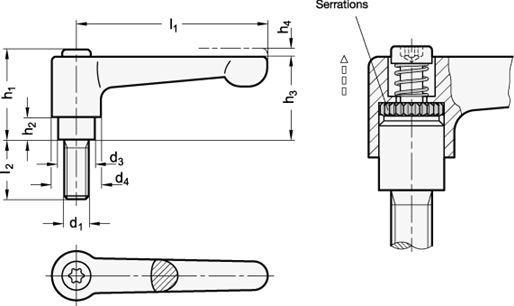

Flat Adjustable Hand Levers GN 302.1 sketch

Show filter

l₁	d₁			l₂							d₃	d₄	h₁	h₂	h₃	h₄ Stroke

22	M 3	-	-	6	8	10	12	16	-	-	8	10,5	18,5	2	16,5	3
22	M 4	M 5	-	12	16	20	25	32	-	-	8	10,5	18,5	2	16,5	3
30	M 4	-	-	12	16	20	25	32	-	-	10	13	24,5	4	22	3,5
30	M 5	M 6	-	12	16	20	25	32	40	50	10	13	24,5	4	22	3,5
45	M 4	-	-	12	16	20	25	32	-	-	10	13	24,5	4	22	3,5
45	M 5	M 6	-	12	16	20	25	32	40	50	10	13	24,5	4	22	3,5
63	M 6	M 8	-	16	20	25	32	40	50	63	13,5	17,5	31	6,5	28,5	4
78	M 8	M 10	M 12	20	25	32	40	50	63	80	16	21	36	8	34	4

Filter combination produces no result.

Specification

Handle
Zinc die casting

Powder coated
Black, RAL 9005, textured finishSW

Orange, RAL 2004, textured finishOS

Red, RAL 3000, textured finishRS

Silver, RAL 9006, textured finishSR

Thread stud and retaining screw
Stainless steel AISI 303

Stainless Steel Characteristics

RoHS

On request

With inch threads

Information

Adjustable hand levers GN 302.1 have a straight lever, not inclined, being parallel to the clamping space.

Adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
