with Threaded Stud, with Ball Pin

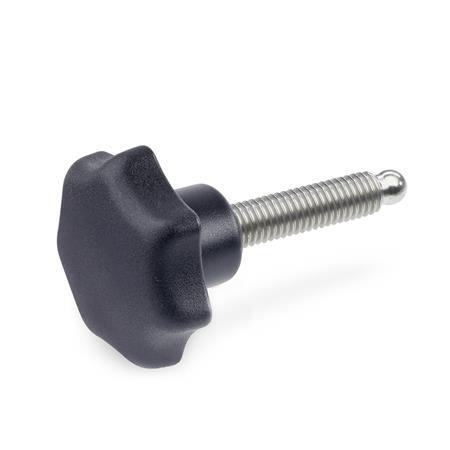

GN 6336.11 Star Knobs, threaded stud Stainless Steel

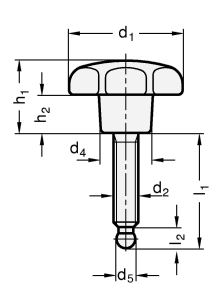

| d1 | d2 | l1 | d4 | d5 +0,05 | h1 | h2 | l2 | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 32 | M 6 | 25 | 35 | 45 | - | 14 | 4,5 | 20 | 10 | 5,1 |
| 40 | M 8 | 30 | 40 | 50 | 60 | 18 | 6,1 | 25 | 13 | 6,2 |
| 50 | M 10 | 35 | 45 | 55 | 65 | 22 | 7,8 | 32 | 17 | 7,3 |
| 63 | M 12 | 40 | 60 | 80 | - | 26 | 9,4 | 40 | 21 | 8,3 |
Filter combination produces no result.
Specification
Star knob DIN 6336
Plastic
Technopolymer (Polyamide PA)
Black, matte finish
Threaded stud
Stainless steel AISI 304 Cu
RoHS
Plastic
Technopolymer (Polyamide PA)
Black, matte finish
Threaded stud
Stainless steel AISI 304 Cu
RoHS
Information
Star knobs GN 6336.11 have a ball pin whose diameter is smaller than the core diameter of the thread.
