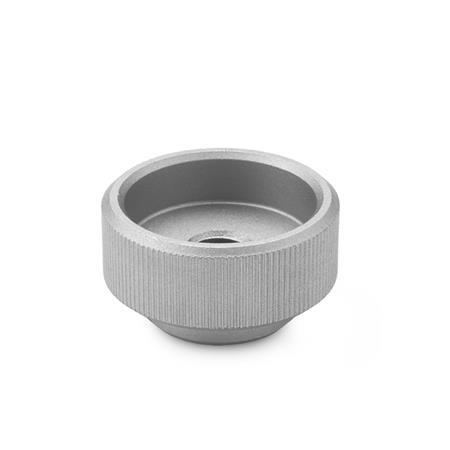

DIN 6303 Stainless Steel Knurled Nuts, matt shot-blasted
Type
| A | without dowel hole |
| B | with dowel hole |
| d1 | d3 | d4 | d5 H11 | e | h | k | t |
|---|---|---|---|---|---|---|---|
| M 5 | 14 | 20 | 1,5 | 2,5 | 12 | 8 | 7 |
| M 6 | 16 | 24 | 1,5 | 2,5 | 14 | 10 | 8 |
| M 8 | 20 | 30 | 2 | 3 | 17 | 12 | 10 |
| M 10 | 28 | 36 | 3 | 4 | 20 | 14 | 12 |
| M 12 | 32 | 40 | 4 | 4 | 24 | 16 | 16 |
Filter combination produces no result.
Specification
Stainless steelNI AISI 303
Matte shot-blasted
RoHS
Matte shot-blasted
RoHS
Information
The dowel bore d5 in the stainless steel knurled nut DIN 6303 is designed for the use of clamping or notch pins.
Knurled nuts DIN 6303 with H7 bore and the size M12 are not provided on the official standard sheet. In addition, the knurling divisions are larger than the DIN standard for better grip.
| How to order |
| ||||||
DIN 6303-M6-A-NI |
