with Rest Position

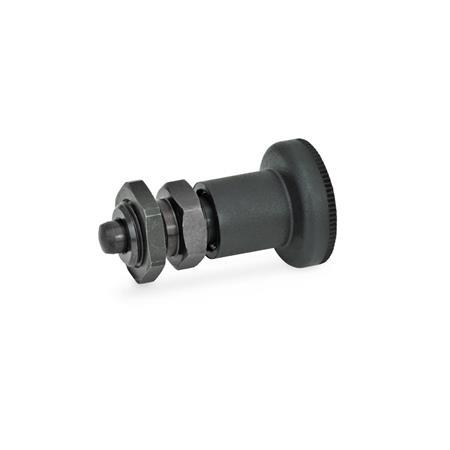

GN 607.1 Indexing Plungers, steel, blackened, knob plastic, black
Type
| A | Without lock nut |
| AK | With lock nut |
| d1 Plunger -0,02/-0,05 Bore H7 | d2 | d3 | e ≈ | l1 | l2 ±0,5 | l3 -0,15 | l4 | A/F | Spring load in N≈ initial | end | Axial load in N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | M 12 x 1,5 | 25 | 19,6 | 45 | 6 | 10 | 5 | 17 | 11 | 28 | 400 |
| 8 | M 16 x 1,5 | 31 | 21,9 | 54 | 8 | 12 | 6 | 19 | 15 | 29 | 500 |
Filter combination produces no result.
Specification
SteelST
Knob
Plastic (Polyamide PA)
RoHS
- Blackened
- Plunger pin hardened
Knob
Plastic (Polyamide PA)
- Black, matte
- Not removable
RoHS
Information
Indexing plungers GN 607.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Indexing plungers GN 607.1 are distinguished for their small dimensions. The extremely low lock nuts GN 909 enlarge the mounting options. The locking tab is an integral part of the knob thus giving reliable operation at all times.
see also...
| How to order |
| ||||||
GN 607.1-6-A-ST |
