Operating Lever Vertical, with Lock Mechanism, with Vertical Mounting Base

GN 810.4 Stainless Steel Toggle Clamps

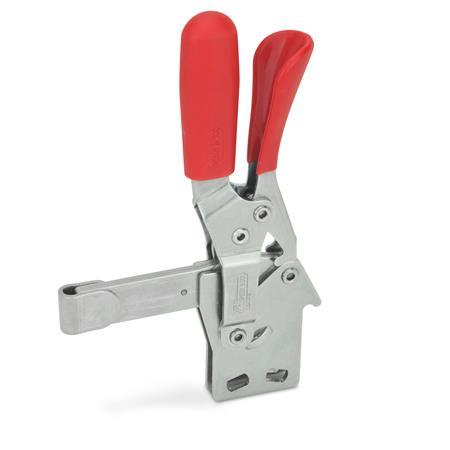

Stainless Steel Toggle Clamps GN 810.4 thumbnail

Stainless Steel Toggle Clamps GN 810.4 sketch

Type

BL	Forked clamping arm, with two flanged washers
BLC	Forked clamping arm, with two flanged washers and clamping screw GN 708.1
FL	Solid clamping arm, with clasp for welding

Show filter

Size	F_H in N Holding capacity	a ≈	b₁	b₂	b₃	b₄	d₁	d₂ ≈	h₁ ≈	h₂	h₃	h₄	h₅ max.

130	1050	28	35	10	5	6,2	M 6	5,5	156	41,5	16	25,5	25
230	2000	40	43	12	6	8,5	M 8	6,5	183	48	18	30	24

Filter combination produces no result.

Size	l₁ ≈ Type BL TypeBLC	Type FL	l₂ ≈	l₃ max.	l₄	m₁	m₂	m₃	m₄	r ≈	s	w Adjustable range

130	85	86	42	54	55	12,5	19	6,5	7,5	79,5	5	17,5
230	110,5	112	58	73	68	18	21	6,5	6,5	104	6	20

Filter combination produces no result.

Specification

Stainless steelNI
AISI 304

All moving parts
Lubricated with special grease

Solid designed plastic handle
Red, oil resistant

Clamping screw GN 708.1, type A

Stainless steel AISI 304
Rubber tip 85 Shore A

Stainless Steel Characteristics

RoHS

Accessory

Clamping Screws

Holders for Clamping Screws GN 801 (for Type BL)

Holders for Clamping Screws GN 809 (for Type FL)

Clamping Arm Extenders GN 801.1 (for Type BL)

Clamping Arm Extenders GN 801.2 (for Type FL)

Clamping Arm Extenders GN 809.1 (for Type FL)

Information

Stainless steel toggle clamps GN 810.4 are latched in both end positions. In the clamped position, this prevents unintentional opening or opening caused by vibrations; and in the open position, it prevents self-closing of the toggle clamp, such as due to an extended clamping arm. The latching can be disabled with a single hand to allow for opening / closing.

They work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Toggle clamps in the U-bar version with two flanged washers (type BL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type BLC.

Type FL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 holders for clamping screws to hold the work piece in place.
