Threaded Stud Stainless Steel

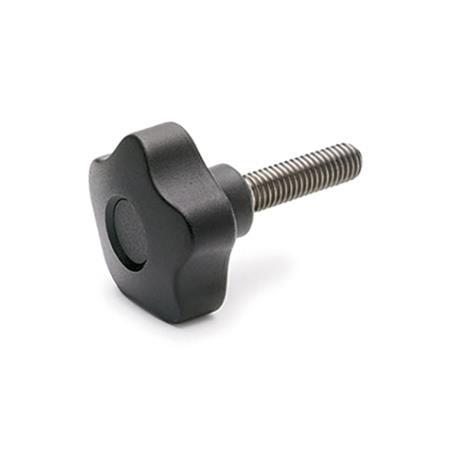

GN 5337.7 Star Knobs with Threaded Stud
ELESA original design VCT-SST.p
| d1 | d2 | Length l | d3 | d4 | h1 | h2 ≈ | |||
|---|---|---|---|---|---|---|---|---|---|
| 25 | M 5 | 10 | 16 | 20 | 25 | 13 | 8 | 19 | 8 |
| 32 | M 6 | 16 | 20 | 25 | 30 | 15 | 10 | 23 | 10 |
| 40 | M 8 | 20 | 25 | 30 | 40 | 17 | 13 | 27 | 12 |
| 50 | M 10 | 20 | 30 | 40 | 45 | 19 | 15 | 32 | 14 |
| 63 | M 12 | 30 | 40 | 50 | - | 22 | 19 | 37 | 16 |
| 74 | M 12 | 30 | 50 | - | - | 26 | 17 | 43,5 | 22 |
| 84 | M 16 | 30 | 50 | 70 | - | 28 | 17 | 44 | 21 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polypropylene PP)
Threaded stud
Stainless steel AISI 303
RoHS
Technopolymer (Polypropylene PP)
- Reinforced, shock resistant
- Temperature resistant up to 90 °C
- Black, matte finish
Threaded stud
Stainless steel AISI 303
RoHS
On request
Cover caps in other colors
(standard color: black)
(standard color: black)
Information
| How to order |
| ||||||
GN 5337.7-40-M8-25 |
