GN 612.3 Cam Action Indexing Plungers

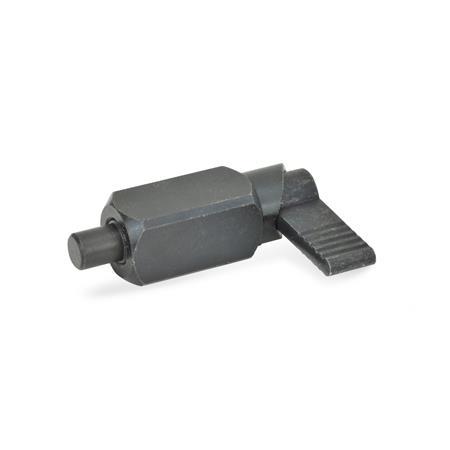

Cam Action Indexing Plungers GN 612.3 thumbnail

Cam Action Indexing Plungers GN 612.3 sketch

Type

A	Without plastic cap
B	With plastic cap

Show filter

d Pin -0,02/-0,04 Bore +0,14/+0,1	s	l₁	l₂	l₃	l₄	l₅	Spring load in N ≈ Initial	end

6	16	56	10	30	32	42	12	32
8	16	56	10	30	32	42	12	32
8	20	69	12	38	37	52	21	58
10	16	56	10	30	32	42	12	32
10	20	69	12	38	37	52	21	58
12	20	69	12	38	37	52	21	58

Filter combination produces no result.

Specification

Steel

Guide blackened, weldable
Plunger pin nitrided

Pressure spring
Stainless steel AISI 301

Cap
Plastic (Polyamide PA)
Black, matte finish

Load Rating Information

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Information

Cam action indexing plungers GN 612.3 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove keeps the plunger in this position.

The square body can therefore be welded in any required position. In order to prevent a change in the spring load by the transferred heat we recommend spot welding the plunger body.
