Spindle Steel, Zinc Plated

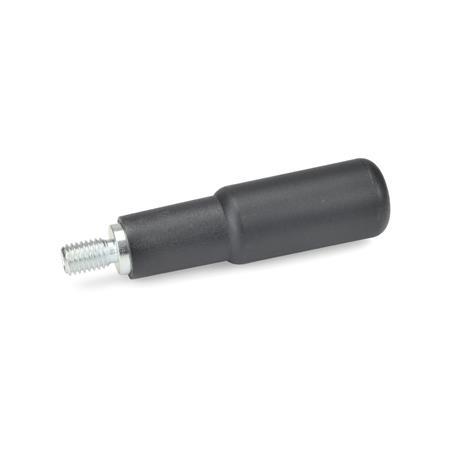

GN 798 Revolving Handles, Plastic / Aluminium
| d1 | d2 | d3 | d4 | l1 | l2 | l3 ≈ | l4 | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | M 6 | - | - | 10 | 13 | 41,5 | 12 | 2,5 | 15 |
| 18 | M 6 | M 8 | - | 10 | 14,5 | 56 | 13 | 2,5 | 19 |
| 22 | M 6 | M 8 | M 10 | 14 | 18,5 | 59 | 14 | 2,5 | 21 |
| 24 | M 8 | M 10 | - | 14 | 18,5 | 74 | 16 | 2,5 | 27 |
| 25 | M 10 | - | - | 16 | 20 | 84 | 16 | 2,5 | 30 |
Filter combination produces no result.
Specification
PlasticKT
Technopolymer (Polyamide PA)
AluminumAL
Polished
Spindle
Steel
Zinc plated, blue passivated
Technopolymer (Polyamide PA)
- Temperature resistant up to 90 °C
- Black, matte finish
AluminumAL
Polished
Spindle
Steel
Zinc plated, blue passivated
Information
Typical in design are the revolving handles GN 798 with their stepped shape consisting of two cylinders giving the operator a better grip.
| How to order |
| ||||||
GN 798-KT-24-M10 |
This could also be interesting...
GN 798.1
Revolving Handles, plastic (Spindle Stainless Steel)
GN 798.2
Revolving Handles, plastic, axle part steel, zinc plated (with female thread)
GN 798.3
Retractable Handles (with hold in both positions)
GN 798.7
Safety Retractable Handles (automatic return to the retracted position)
GN 598
Revolving Handles, plastic / steel (new)
