for Push-On Clamping

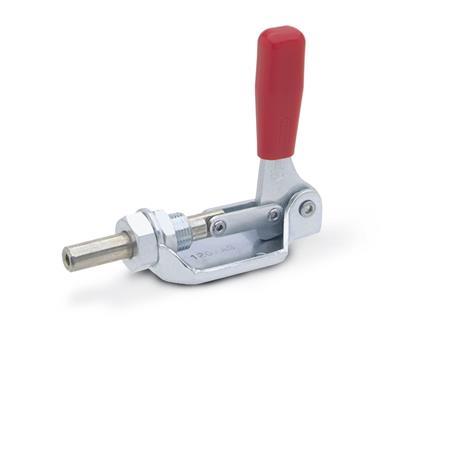

GN 841 Push-Pull Type Toggle Clamps, Steel, zinc plated
Type
| AS | Steel sheet metal body |

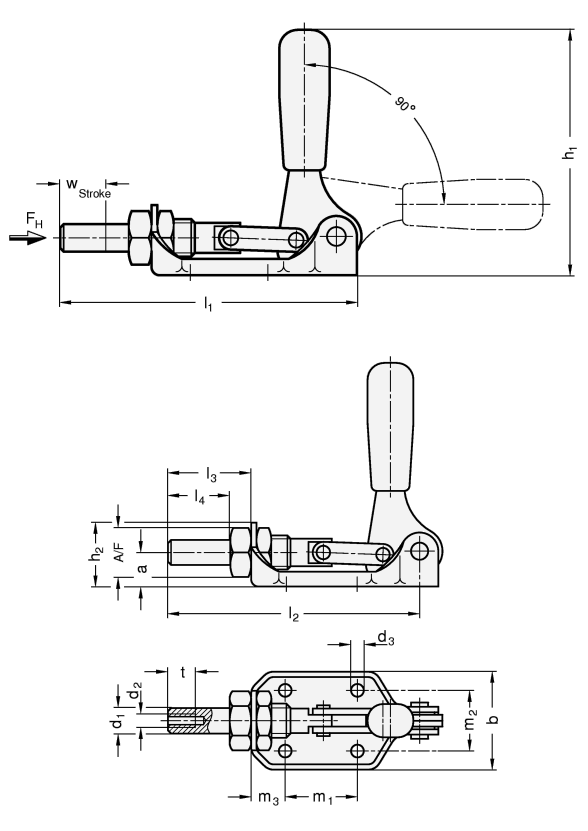

| Size | FH in N Holding capacity | a | b | d1 | d2 | d3 | h1 ≈ | h2 | l1 ≈ |
|---|---|---|---|---|---|---|---|---|---|
| 120 | 3600 | 17 | 48 | 12 | M 6 | 5,5 | 111 | 31 | 130 |
| 300 | 7200 | 20 | 58 | 14 | M 8 | 6,5 | 140 | 36 | 167 |
Filter combination produces no result.
| Size | l2 ≈ | l3 ≈ | l4 ≈ | m1 | m2 | m3 | A/F | t | w Stroke |
|---|---|---|---|---|---|---|---|---|---|
| 120 | 121 | 40 | 30 | 34 | 30 | 17 | 24 | 12 | 20 |
| 300 | 155 | 57 | 45 | 50 | 34 | 18 | 27 | 16 | 33 |
Filter combination produces no result.
Specification
Sheet metal parts
Case-hardened Steel C10
Zinc plated, blue passivated
Plunger
Steel St 37
Zinc plated, blue passivated
Guide bushing
Brass
Zinc plated, blue passivated
All moving parts
Lubricated with special grease
Hand grip
High quality, oil resistant, red plastic
RoHS
Case-hardened Steel C10
Zinc plated, blue passivated
Plunger
Steel St 37
Zinc plated, blue passivated
Guide bushing
Brass
Zinc plated, blue passivated
All moving parts
Lubricated with special grease
Hand grip
High quality, oil resistant, red plastic
RoHS
Accessory
