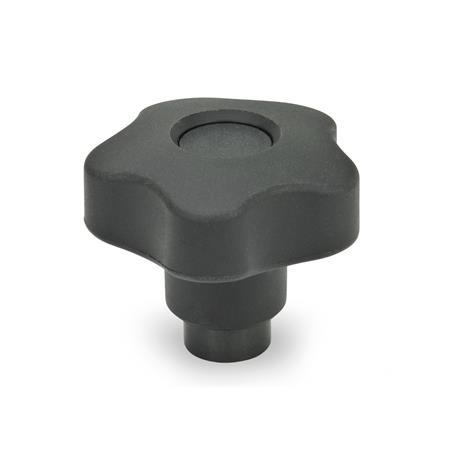

GN 5337.3 Safety Star Knobs, bushing steel, blackened / Stainless Steel
| d1 | d2 | d3 | d4 | d5 | h1 | h2 | h3 | h4 Stroke | t min. | |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 | M 6 | M 8 | 13,5 | 18 | 13,5 | 30 | 14 | 7 | 2,5 | 11 |
| 50 | M 8 | M 10 | 16 | 22 | 16,5 | 34 | 15 | 8 | 3,5 | 14 |
Filter combination produces no result.
Specification
Knob
Plastic
Technoplymer (Polyamide PA)
Color of the cover cap
black, RAL 9005, matte finish
Threaded bushing
Annular gear
Zinc die casting
RoHS
Plastic
Technoplymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black, matte finish
Color of the cover cap
black, RAL 9005, matte finish
Threaded bushing
- SteelST
Blackened - Stainless steelNI AISI 303
Annular gear
Zinc die casting
RoHS
On request
Cover caps in other colors
Information
Safety star knobs GN 5337.3 are most suitable for applications where an accidental or inconsiderate loosening or adjusting of the knob may lead to accidents.
In non-operative condition, the star knob is not linked with the threaded bushing, i.e. the knob can be turned easily.
Only after axial pushing of the star knob, the two serrations get engaged so that the knob can be untightened resp. tightened.
Atfer releasing, the two serrations are disengaged by a spring.
