GN 125 Flat Adjustable Tension Levers, with threaded stud

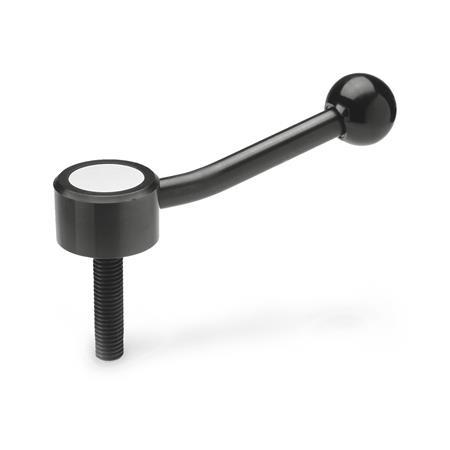

Flat Adjustable Tension Levers with threaded stud GN 125 thumbnail

Flat Adjustable Tension Levers with threaded stud GN 125 sketch

Type

D	straight lever
E	angled lever

Show filter

d₁	d₂	l₁								d₃	d₄	d₅	h₁	h₂	h₃	h₄ ≈	h₅ Stroke	l₂

32	M 8	12	16	20	25	32	40	50	63	13,5	8	20	20,5	1,5	12,5	36	4	100
32	M 10	20	25	32	40	50	63	80	-	13,5	8	20	20,5	1,5	12,5	36	4	100
36	M 10	16	20	25	32	40	50	63	80	16	10	25	24,5	2	15	45	4,5	120
36	M 12	25	32	40	50	63	80	-	-	16	10	25	24,5	2	15	45	4,5	120
40	M 12	25	32	40	50	63	80	-	-	19	12	30	26,5	2	16	50	4,5	130
45	M 16	32	40	50	63	80	-	-	-	23	12	32	31,5	2	20	60	5	145

Filter combination produces no result.

Specification

Steel
Blackened
Threaded stud
Property class 5.8

Cover
Plastic, light gray

Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish

Safety circlip
Plastic (Polyacetal)

Strength Values of Screws

Plastic Characteristics

RoHS

On request

With inch threads

Information

The overall height of flat adjustable tension levers GN 125 is reduced to a minimum.

As all other adjustable levers, they are ideal when-ever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.
