Antibacterial Plastic

GN 634.1 Wing Nuts

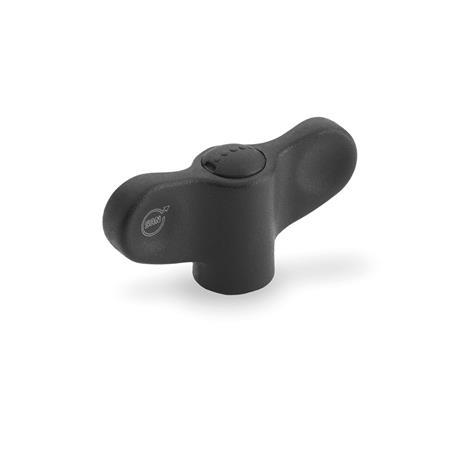

Wing Nuts GN 634.1 thumbnail Zoom ELESA

Antibacterial Plastic

GN 634.1 Wing Nuts

Wing Nuts GN 634.1
© Copyright
Otto Ganter GmbH & Co. KG
Photo can differ
ELESA original design EWN.SST-SANInfo
Wing Nuts GN 634.1 sketch


Form

EWith threaded blind bore
d1d2d3bh1h2h3h4
40M 613,562041218
55M 8168286,51825
Filter combination produces no result.

Specification

Plastic
Technopolymer (Polyamide PA)
  • Glass fiber reinforced
  • Temperature resistant up to 130 °C
  • Black-gray, RAL 7021, matte finishSGASGA
  • White, RAL 9016, matte finishWSAWSA

Threaded bushing
Stainless steel AISI 303

Cover cap
Plastic
  • Black-gray for SGA
  • White for WSA

RoHS

Information

Wing nuts GN 604.1 are manufactured from an antibacterial plastic.

Adding a silver-based substance has created a natural active agent that helps to prevent the growth of bacteria. Even after repeated cleaning with soap or solvent, the antibacterial effect of this additive will not diminish. Sterilising at temperatures below 130 °C will also have no effect on the antibacterial property.

With these properties, the handles are the perfect choice for use in medical engineering, in the food and the pharmaceutical industry, and in general wherever hygiene is of great importance.

How to order
1d1
2d2
3Form
4Oberfläche
GN 634.1-55-M8-E-SGA
