Retractable Mechanism Steel, Locked in Operating Position

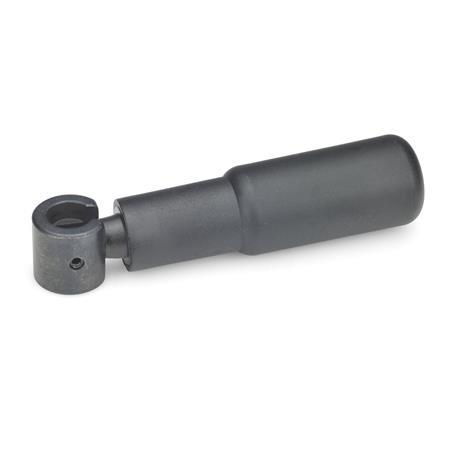

GN 798.3 Retractable Handles

Show filter

d₁	d₂	d₃	l₁ ≈	l₂	l₃	l₄ ≈	l₅

16	M 5	16	58	15	5	52,5	9,5
18	M 5	16	72,5	15	5	67	9,5
22	M 6	20	80,5	19,5	6	74	10,5
24	M 6	20	95,5	19,5	6	89	10,5
25	M 6	20	105,5	19,5	6	98,5	10,5

Filter combination produces no result.

Specification

Handle
PlasticKT
Technopolymer (Polyamide PA)

Temperature resistant up to 90 °C
Black, matte finish
Revolving

Retractable mechanism
Steel
Blackened

Plastic Characteristics

RoHS

Information

Typical in design are the retractable handles GN 798.3 with their stepped shape consisting of two cylinders giving the operator a better grip, especially when pulling the handle out from its locked position before it can be folded back into the rest position.

Retractable handles GN 798.3 are used when the handle should not protrude temporarily for space or safety reasons.
