Duroplast, with Threaded Stud
GN 5337.5 Star Knobs
ELESA original design VC.192-SST-p

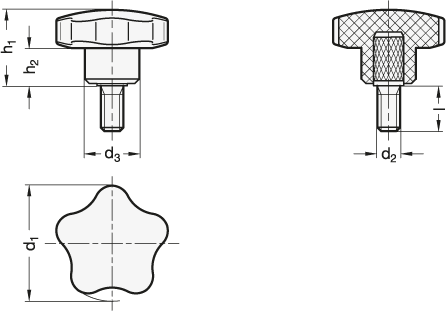

| d1 | d2 | Length l | d3 | h1 +1 | h2 +1 | ||||
|---|---|---|---|---|---|---|---|---|---|
| 32 | M 6 | 10 | 16 | 20 | 35 | - | 19 | 23 | 11 |
| 40 | M 8 | 20 | 25 | 30 | 35 | 45 | 21 | 27 | 12 |
| 50 | M 10 | 20 | 30 | 40 | 50 | - | 25 | 33 | 14 |
| 60 | M 12 | 30 | 40 | 50 | - | - | 27 | 37 | 17 |
Filter combination produces no result.
Specification
Plastic
Duroplast (PF)
Threaded stud
Stainless steel AISI 303
RoHS
Duroplast (PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
Threaded stud
Stainless steel AISI 303
RoHS
Information
Star knobs GN 5337.5 with threaded stud meet highest quality requirements. Due to a special manufacturing process the mould parting line can be avoided.
Duroplast features very good chemical resistance.
The underside of the star knobs with threaded stud have no recess and therefore meet more stringent hygiene requirements.
| How to order |
| ||||||
GN 5337.5-40-M8-25 |
RoHS compliant:
-
-
Weight:
-
-
