for Power Clamps GN 864
GN 864.1 Protective Covers
| for Power clamps GN 864 Size | s | d1 | d2 H8/h6 | d3 | d4 | d5 | l1 | l2 | l3 | l4 | l5 | m1 | m2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 32 | M 5 | 7 | 5,5 | 7 | 9 | 76 | 5 | 10 | 15,5 | 2,1 | 22 | 17 |
| 32 | 42 | M 6 | 9 | 6,5 | 9 | 11 | 109 | 6,5 | 12 | 20 | 2,1 | 30 | 25 |
| 40 | 52 | M 8 | 11 | 8,5 | 11 | 13 | 131 | 7,5 | 14 | 23 | 2,1 | 37 | 30 |
| 50 | 62 | M 10 | 13 | 10,5 | 13 | 16 | 162 | 9 | 16 | 27 | 3,1 | 44 | 47 |
Filter combination produces no result.
Specification
Aluminum
Socket cap screws DIN 912,
centering guide bushings
Steel, blackened
RoHS
- Black anodizedES
- Anti-stick coating
Polytetrafluorethylene (PTFE), greenFG
Socket cap screws DIN 912,
centering guide bushings
Steel, blackened
RoHS
Information

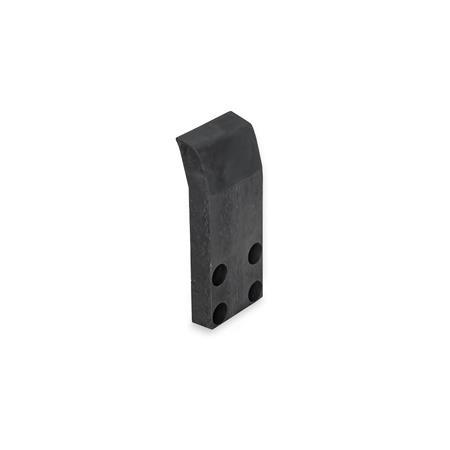

Protective covers GN 864.1 are designed for power clamps GN 864 and protect the tensioning mechanism from penetrating dirt by covering the back side of the power clamp.
The type FG is equipped with an anti-stick coating of Polytetrafluorethylene (PTFE) for protection against welding spray and corrosion.
Socket cap screws and centering guide bushings are included.
| How to order |
| ||||
GN 864.1-52-FG |
