with Special Tipped Threaded Studs

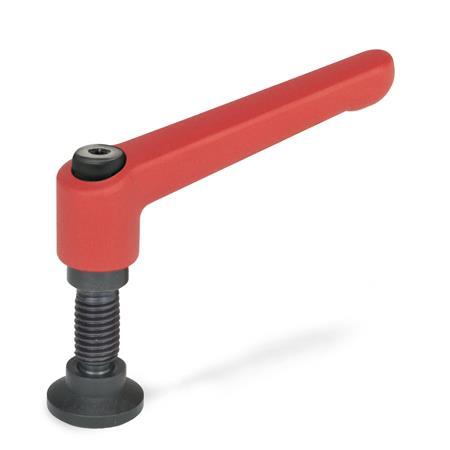

GN 306 Adjustable Hand Levers

Type

MS	Brass tip
KU	Plastic tip
DZ	Hardened oval tip
ZK	Spherical end
KD	Spherical end with swivel thrust pad

Show filter

l₁	d₁	l₂						d₃	d₄	d₅	d₆	d₇ +0,05	d₈	h₁	h₂	h₃	h₄ Stroke	l₃	l₄	l₅	l₆	l₇

30	M 6	16	20	25	32	40	50	10	13	4	3,5	4,5	15	24,5	4	31	3,5	1	1,3	1,8	5,1	3,6
45	M 6	16	20	25	32	40	50	10	13	4	3,5	4,5	15	24,5	4	35	3,5	1	1,3	1,8	5,1	3,6
63	M 8	20	25	32	40	50	63	13,5	17,5	6	5	6,1	18	31	6,5	45	4	1,5	1,6	2,5	6,2	4,2
63	M 10	20	25	32	40	50	63	13,5	17,5	8	6,5	7,8	21	31	6,5	45	4	2	1,9	3,5	7,3	4,3

Filter combination produces no result.

Specification

Handle

Zinc die casting
Powder coated
Black, RAL 9005, textured finishSW
Orange, RAL 2004, textured finishOS
Red, RAL 3000, textured finishRS
Silver, RAL 9006, textured finishSR

Threaded stud and retaining screw
Steel (5.8), blackened

Thrust point

Type MS: Brass
Type KU: Plastic (POM)
Type DZ: Steel, hardened
(oval point)

Thrust pad
Plastic (Polyacetal POM)

Temperature resistant up to 80 °C
Black, matte finish

Strength Values of Screws

Plastic Characteristics

RoHS

On request

With threaded stud in stainless steel

Flat handle (GN 302)

Information

Adjustable hand levers GN 306 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever disengages the serrations, allowing it to be swivelled to the ideal clamping position. When the lever is released, the serrations
automatically re-engage.

The brass and plastic tipped studs (Types MS / KU) help to avoid damage to the work piece being clamped.

The hardened tipped stud (Type DZ) provides an oval point-shaped pressure point.

The swivel thrust pad (Type KD) can easily be snapped on and taken off. Pad is supplied unmounted.
