Steel / Stainless Steel, Housing Plastic

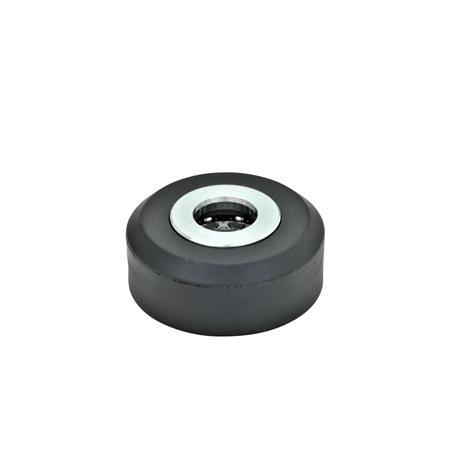

GN 6344 Washer Rings with Axial Ball Bearing
ELESA original design CMC
| d1 | d2 | d3 | h | for screws with thread | Static load in kN Steel | Stainless Steel |
|---|---|---|---|---|---|---|
| 32 | 8 | 18 | 14 | M 8 | 30 | 40 |
| 32 | 10 | 18 | 14 | M 10 | 50 | 55 |
| 32 | 12 | 18 | 14 | M 12 | 50 | 55 |
Filter combination produces no result.
Specification
Housing Plastic
Technopolymer (Polyamide PA)
Axial ball bearing
Steel
Zinc plated, blue passivated
Stainless steel AISI 303
RoHS
Technopolymer (Polyamide PA)
- Glass fibre reinforced
- Temperature resistant up to 80 °C
- Black-gray, matte finish
Axial ball bearing
- Antifriction bearing steel, blank ST
German Material No. 1.3505
Steel
Zinc plated, blue passivated
- Antifriction bearing steel NI
AISI 440C
Stainless steel AISI 303
RoHS
Information
Used in connection with clamping screws, e.g. star knob screws, washer rings with axial ball bearing GN 6344 have the following advantages:
- As much as twice the clamping force through lower surface friction
- Fixed contact surface protecting the element to be clamped
| How to order |
| ||||||
GN 6344-ST-32-10 |
RoHS compliant:
-
-
Weight:
-
-
