Plastic, Protruding Stainless Steel Bushing

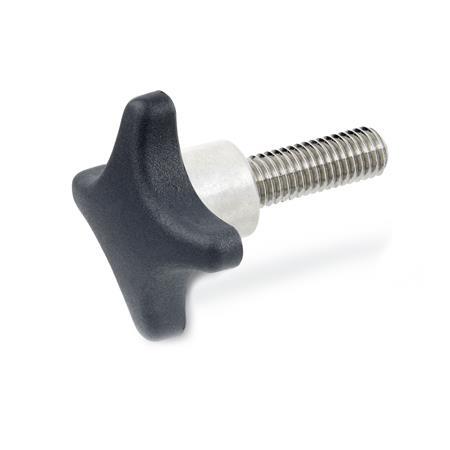

GN 6335.5 Hand Knobs, threaded stud Stainless Steel
| d1 | d2 | Length l ≈ | d3 | h1 | h2 | h3 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | M 6 | 16 | 20 | 25 | 30 | 35 | 45 | - | - | 12 | 20 | 10 | 9 |
| 40 | M 8 | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 55 | 14 | 25 | 13 | 10 |
| 50 | M 10 | 25 | 30 | 35 | 45 | 55 | - | - | - | 18 | 32 | 20 | 12 |
| 63 | M 12 | 30 | 35 | 40 | 50 | 60 | - | - | - | 20 | 40 | 25 | 14 |
Filter combination produces no result.
Specification
Knob
Technopolymer (Polyamide PA)TE
Threaded stud
Stainless steel AISI 303
RoHS
Technopolymer (Polyamide PA)TE
- Shock-resistant
- Black matte
Threaded stud
Stainless steel AISI 303
RoHS
Information
The hand knobs have an immaculate contact or clamping surface thanks to the protruding stainless steel bushing.
| How to order |
| ||||||||
GN 6335.5-TE-63-M12-60 |
RoHS compliant:
-
-
Weight:
-
-
