Zinc Die Casting, Threaded Stud Stainless Steel

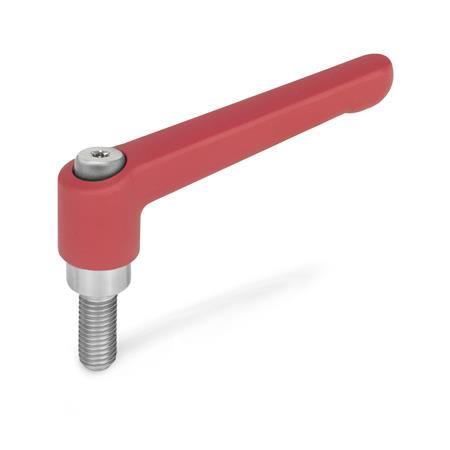

GN 300.1 Adjustable Hand Levers

Adjustable Hand Levers GN 300.1 thumbnail

Show filter

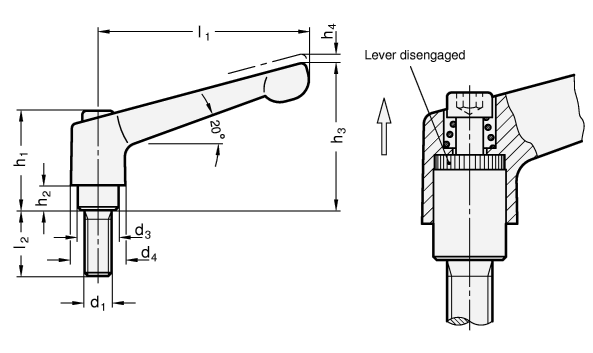

l₁	d₁			l₂							d₃	d₄	h₁	h₂	h₃	h₄ Stroke

22	M 3	-	-	6	8	10	12	16	-	-	8	10,5	18,5	2	23	3
22	M 4	M 5	-	12	16	20	25	32	-	-	8	10,5	18,5	2	23	3
30	M 3	-	-	6	8	10	12	16	-	-	10	13	24,5	4	31	3,5
30	M 4	-	-	12	16	20	25	32	-	-	10	13	24,5	4	31	3,5
30	M 5	M 6	-	12	16	20	25	32	40	50	10	13	24,5	4	31	3,5
45	M 4	-	-	12	16	20	25	32	-	-	10	13	24,5	4	34	3,5
45	M 5	M 6	-	12	16	20	25	32	40	50	10	13	24,5	4	34	3,5
63	M 6	M 8	-	16	20	25	32	40	50	63	13,5	17,5	31	6,5	45	4
78	M 8	M 10	M 12	20	25	32	40	50	63	80	16	21	36	8	54	4
92	M 10	M 12	-	20	25	32	40	50	63	80	19	24	43	11	64	4
108	M 12	M 16	-	32	40	50	63	80	-	-	23	30	50,5	12	75	5

Filter combination produces no result.

Specification

Handle
Zinc die casting

Powder coated
Black, RAL 9005, textured finishSW

Black, RAL 9011, silk finishSZ

Orange, RAL 2004, textured finishOS

Red, RAL 3000, textured finishRS

Silver, RAL 9006, textured finishSR

Chrome platedCR

UncoatedRH

Threaded stud and retaining screw
Stainless steel AISI 303

Stainless Steel Characteristics

RoHS

On request

With inch threads

Information

Adjustable hand levers GN 300.1 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
