Plastic

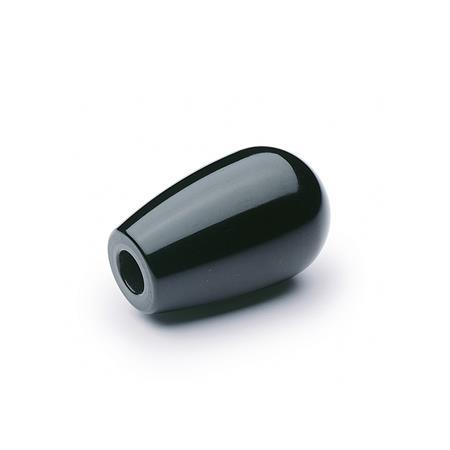

GN 719 Domed Gear Knobs
ELESA original design I.222
| d1 | d2 | d3 | h | t1 min. | t2 ±0,5 | |
|---|---|---|---|---|---|---|
| 15 | M 6 | - | 12 | 25 | 16 | 3,5 |
| 20 | M 8 | - | 14 | 31 | 20 | 3,5 |
| 26 | M 8 | M 10 | 17 | 42 | 20 | 5 |
| 33 | M 10 | M 12 | 20 | 54 | 40 | 8 |
| 38 | M 12 | - | 23 | 68 | 45 | 11 |
| 41 | M 14 | M 16 | 25 | 87 | 55 | 14 |
Filter combination produces no result.
Specification
Plastic
Duroplast (Phenolic PF)
RoHS
Duroplast (Phenolic PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
RoHS
Information
Domed gear knobs GN 719 are very often used in place of ball knobs DIN 319 on switch levers, gear levers etc. Knobs for such applications are often chosen for ergonomical reasons.
| How to order |
| ||||
GN 719-20-M8 |
RoHS compliant:
-
-
Weight:
-
-
