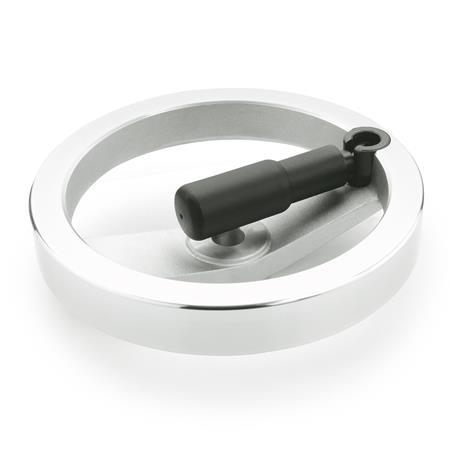

GN 322.3 Handwheels with Retractable Handle, aluminum, rim polished, handle locked
Bore code
| B | Without keyway |
| K | With keyway |
Type
| R | With revolving retractable handle |
| d1 | d2 H7 Bore | d3 | b | c | l1 | l2 | l3 | r | Ø Handle | |
|---|---|---|---|---|---|---|---|---|---|---|
| 125 | 12 | - | 31 | 24,5 | 6,5 | 18 | 44 | 60 | 50 | 22 |
| 140 | 14 | - | 36 | 24,5 | 6 | 19 | 45,5 | 75 | 57,5 | 24 |
| 160 | 14 | 16 | 36 | 25 | 6,5 | 20 | 47 | 75 | 67,5 | 24 |
| 200 | 18 | 20 | 42 | 25 | 7,5 | 24 | 52,5 | 85 | 84 | 25 |
| 250 | 22 | - | 48 | 26,5 | 12 | 28 | 61 | 85 | 111 | 25 |
Filter combination produces no result.
Specification
Aluminum
Radial and axial runout of the rim < 0.4
RoHS
- Hub machined
- Rim turned and polished
- Unmachined wheel body Matte shot-blasted
Radial and axial runout of the rim < 0.4
RoHS
Information
The handle in the handwheels GN 322.3 is locked in a conical bore in the operating position.
For reversal, it must first be pulled from the cone in axial direction. A pressure spring holds the handle in both positions. When swung out, it automatically engages again.
| How to order |
| ||||||||
GN 322.3-160-B16-R |
