GN 428 Cabinet U-Handles

Type

A	Mounting from the back (threaded blind bore)
B	Mounting from the operator's side

Show filter

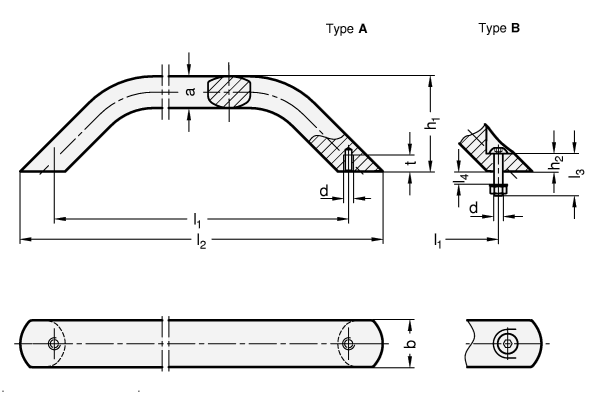

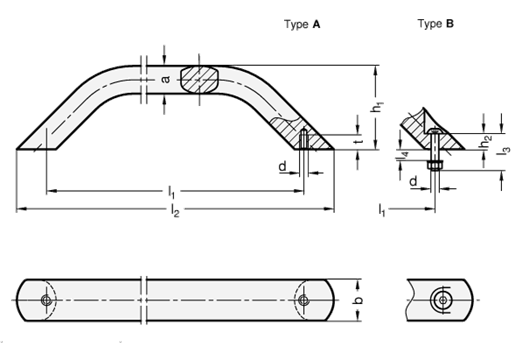

b	l₁	a	d	h₁	h₂	l₂	l₃	l₄	t

28	200	18	M 8	63	11,8	240	30	10	10
28	250	18	M 8	63	11,8	290	30	10	10
28	300	18	M 8	63	11,8	340	30	10	10
28	400	18	M 8	63	11,8	440	30	10	10
36	300	26	M 10	71	16,6	355	40	13	14
36	400	26	M 10	71	16,6	455	40	13	14
36	500	26	M 10	71	16,6	555	40	13	14
36	600	26	M 10	71	16,6	655	40	13	14
36	800	26	M 10	71	16,6	855	40	13	14

Filter combination produces no result.

Specification

AluminumAL

Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Anodized, natural colorEL

Type B

Socket button head screws ISO 7380
Hexagon nuts ISO 4032
Washers DIN 125

Stainless steel AISI 304

Stainless Steel Characteristics

Load rating information

RoHS

On request

Other finishes

Information

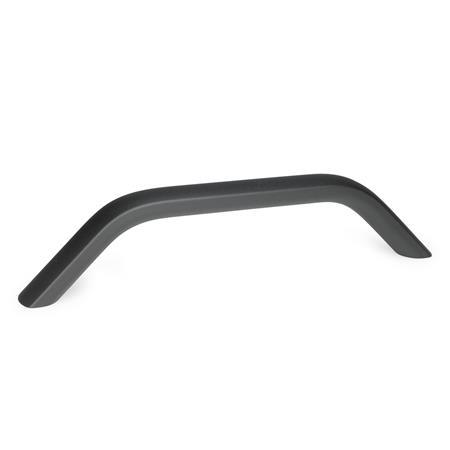

Cabinet U-handles GN 428 are manufactured from a bent aluminum profile and have excellent stability and ergonomic design. Due to the manufacturing process, special designs can be supplied even in relatively small quantities.

For type B, socket button head screws, hexagon nuts and washers are included parts of the order.

Especially in combination with the smaller cabinet U-handles GN 328, they meet the requirements of modern industrial design.

How to order
