Threaded Stud Stainless Steel / Foot Plastic

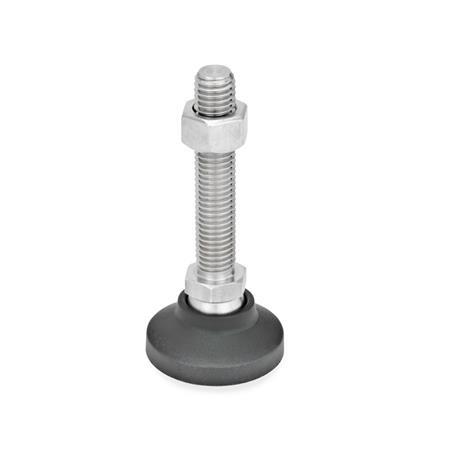

GN 343.8 Leveling Feet

Type

A	Without rubber pad
G	With rubber pad

Show filter

d₁	d₂		l₁			l₂	l₃	A/F	Static load in kN (see information)

25	M 6	M 8	40	50	63	18,5	4	12	5
25	M 10	-	50	63	80	18,5	4	12	5
32	M 8	-	40	50	63	22,5	5	12	7
32	M 10	-	50	63	80	22,5	5	15	7
32	M 12	-	63	80	100	22,5	5	15	7
40	M 8	M 10	50	63	80	25,5	6	15	10
40	M 12	-	63	80	100	25,5	6	17	10
50	M 8	M 10	50	63	80	27,5	7	15	10
50	M 12	M 16	63	80	100	27,5	7	17	10
60	M 10	-	50	63	80	27,5	7	17	10
60	M 12	-	63	80	100	35,5	8,5	17	14
60	M 16	-	80	100	125	35,5	8,5	24	14
60	M 20	M 24	98	138	158	35,5	8,5	24	14

Filter combination produces no result.

Specification

Foot: Plastic (Polyamide PA)

Glass fiber reinforced
Black, matte finish
Temperature resistant up to 100 °C

Threaded stud
Stainless steel AISI 303

Hexagon nut ISO 4032
Stainless steel AISI 304

Rubber underlay (NBR)
70 Shore A, black

Stainless Steel Characteristics

Plastic Characteristics

Elastomer Characteristics

RoHS

On request

ESD version
(conductive plastic cap to avoid
electrostatic charging;
see also GN 343.6
type KSE / type KRE)

Information

Leveling feet GN 343.8 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.

Exceeding the static values specified in the above table could lead to failure of the plastic component.

The above values have been arrived at by a series of load tests whereby a defined number of leveling feet were subjected to a vertical load over a defined period.

Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.

Leveling feet GN 343.8 are supplied assembled, but are removable.
