Plastic, Bushing / Retracting Mechanism Steel

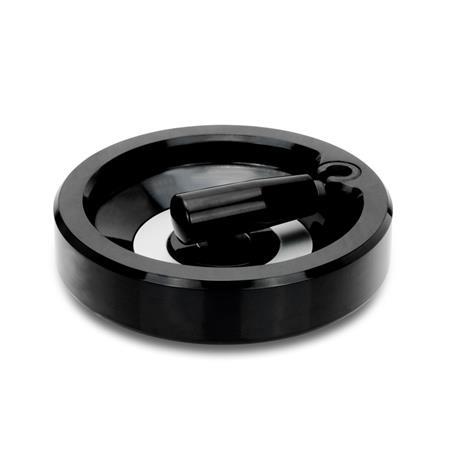

GN 520.4 Handwheels with Retractable Handle
ELESA original design VDN.FP+IR-A
Bore code
| B | Without keyway |
| K | With keyway |
Type
| D | With revolving retractable handle |
| d1 | d2 H7 Bore | d3 | d4 | d5 | d6 | d7 | b | l1 -0,5 | l2 -0,5 | l3 | l4 | r | Ø Handle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 10 | 24 | 22 | 35 | 54 | 39 | 26 | 12 | 33,5 | 51 | 56 | 37 | 22 |
| 125 | 12 | 32 | 26,5 | 44 | 70 | 46 | 28 | 15 | 38 | 57 | 56 | 48 | 22 |
| 150 | 14 | 32 | 26,5 | 50 | 80 | 48 | 30 | 15 | 38 | 60 | 65 | 57 | 23 |
| 175 | 16 | 40 | 33 | 55 | 90 | 56 | 32 | 15 | 43 | 66 | 80 | 68 | 26 |
| 200 | 20 | 40 | 33 | 55 | 90 | 60 | 32 | 15 | 43 | 68 | 90 | 76,5 | 28 |
| 225 | 20 | 49 | 40 | 66 | 110 | 66 | 33 | 15 | 44,5 | 71 | 90 | 88 | 28 |
| 250 | 22 | 49 | 40 | 66 | 110 | 70 | 36 | 15 | 44,5 | 75 | 90 | 101 | 28 |
| 300 | 26 | 58 | 58 | 94 | 148 | 82 | 36 | 18 | 56 | 87 | 90 | 124 | 28 |
Filter combination produces no result.
Specification
Plastic
Duroplast (PF)
Hub bushing
Steel, blackened finish
Retractable handle
RoHS
Duroplast (PF)
- Reinforced
- Temperature resistant up to 110 °C
- Black, shiny finish
- Flash mark polished
Hub bushing
Steel, blackened finish
Retractable handle
- Plastic, Duroplast (Polyamide PA)
Black, shiny finish - Retracting mechanism
Steel, blackened finish
RoHS
On request
Without bore
With safety-retractable handle
(swivelling back automatically)
With safety-retractable handle
(swivelling back automatically)
Information
The handle in the handwheels GN 520.4 is locked in a conical bore in the operating position.
For reversal, it must first be pulled from the cone in axial direction.
A pressure spring holds the handle in both positions. When swung out, it automatically engages again.
This standard replaces the previous handwheels GN 520.3.
| How to order |
| ||||||||
GN 520.4-200-K20-D |
