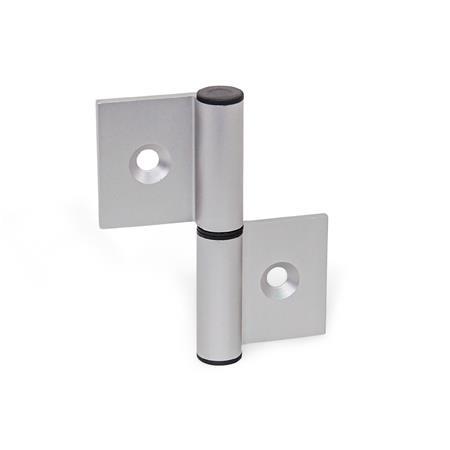

GN 2294 Hinges

Type

A	Exterior hinge wings
I	Interior hinge wings

Coding

C	With countersunk holes

Show filter

l₁ Type A	Type I	l₂	d₁	d₂	l₃	l₄	l₅	m₁ Type A	Type I	m₂	m₃	m₄	s

72	86	82	6,6	14	40	36	43	40,8	55	42	-	-	3,5
72	86	162	6,6	14	80	36	43	40,8	55	-	50	32	3,5

Filter combination produces no result.

Specification

Aluminum
Anodized, natural colorEL

Bearing bushing / cover cap

Plastic
Technopolymer (Polyamide PA)
Graphite gray, RAL 7024

Tapered dowel pin ISO 8741
Steel
Zinc plated, blue passivated

Mounting information

Operating Instruction for GN 2290

Plastic Characteristics

RoHS

On request

Other lengths and hole spacings

Other finishes

Information

Hinges GN 2294 are made of drawn profiled aluminum and are used on doors and covers, for example.

Given the external hinge wing, type A hinges allow mounting with a very small door gap. The type I is fastened in the door gap. The mounting screws are therefore inaccessible and hence protected from vandalism when the door is closed.

The hinges are delivered loose and must be mounted according to the accompanying instructions. Any hinge combination may be realized thanks to the modular design and available accessories.
