Technopolymer, with Protruding Steel bushing

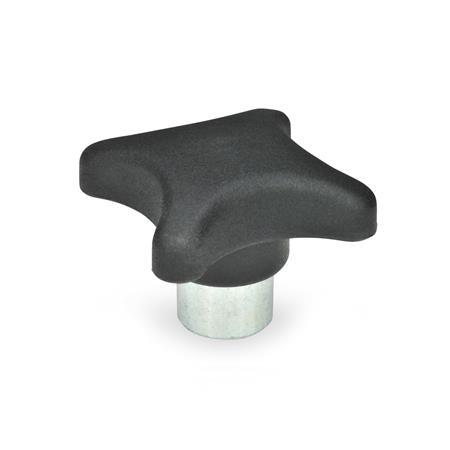

GN 6335.2 Hand Knobs
Type
| E | With threaded blind bore |
| C | With plain blind bore, Tol. H7 |
| d1 | d2 Type E | d3 H7 Type C | d4 | h1 | h2 ≈ | h3 | t min. | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | M 6 | - | B 6 | - | 12 | 20 | 10 | 9 | 12 |
| 40 | M 6 | M 8 | B 6 | B 8 | 14 | 25 | 13 | 10 | 14 |
| 50 | M 8 | M 10 | B 8 | B 10 | 18 | 32 | 20 | 12 | 18 |
| 63 | M 10 | M 12 | B 10 | B 12 | 20 | 40 | 25 | 14 | 22 |
| 80 | M 12 | M 16 | B 16 | - | 25 | 50 | 30 | 17 | 30 |
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Steel
Zinc plated, blue passivated
RoHS
Technopolymer (Polyamide PA)
- Shock-resistant
- Black, matte
Bushing
Steel
Zinc plated, blue passivated
RoHS
Information
Hand knobs GN 6335.2 with protruding steel bushing have important advantages:
The face of the bushing is exactly square to the bore and is with the complete diameter out of steel. The protruding steel bushing allows a perfect cross-dowels connection.
| How to order |
| ||||||
GN 6335.2-50-M10-E |
