Plain, Rim Polished

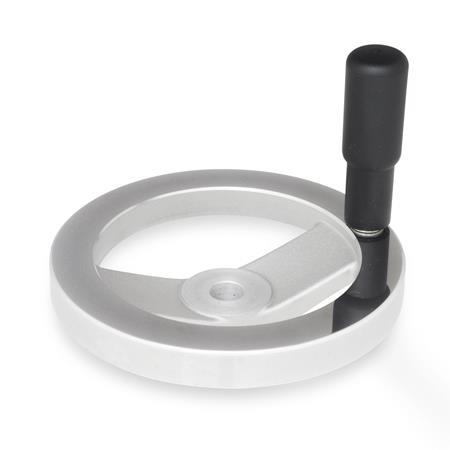

GN 322 Spoked Handwheels, rim polished
Bore code
| B | Without keyway |
| K | With keyway |
Type

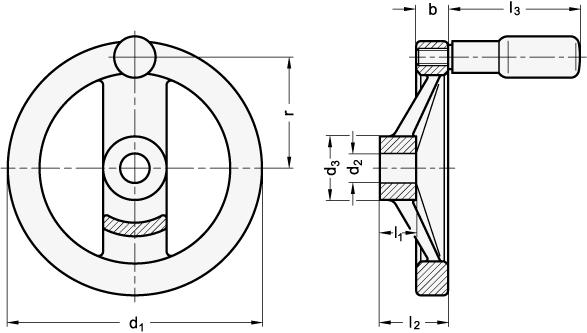

| A | Without handle |
| R | With revolving handle |
| d1 | d2 H7 Bore | d3 | b | l1 | l2 | l3 | r | Ø Handle GN 798 | |
|---|---|---|---|---|---|---|---|---|---|
| 125 | 12 | 14 | 31 | 15 | 18 | 33 | 61,5 | 54 | 22 |
| 140 | 14 | 16 | 36 | 16,5 | 19 | 36 | 76,5 | 61 | 24 |
| 160 | 14 | 16 | 36 | 18 | 20 | 39 | 76,5 | 71 | 24 |
| 200 | 18 | 20 | 42 | 20,5 | 24 | 45 | 86,5 | 89 | 25 |
| 250 | 22 | 26 | 48 | 23 | 28 | 51 | 86,5 | 113 | 25 |
Filter combination produces no result.
Specification
Aluminum
Radial and axial runout of the rim < 0.4
Wheel body
Revolving handles GN 798
RoHS
- Hub machined
- Rim turned on all sides
Radial and axial runout of the rim < 0.4
Wheel body
- Rim high-polished
- Unmachined body shot-blasted
Revolving handles GN 798
- Plastic, Technopolymer
Black, matte - Spindle steel
Zinc plated, blue passivated
RoHS
Information
| How to order |
| ||||||||
GN 322-140-K14-R |
