with Colored Cover Caps

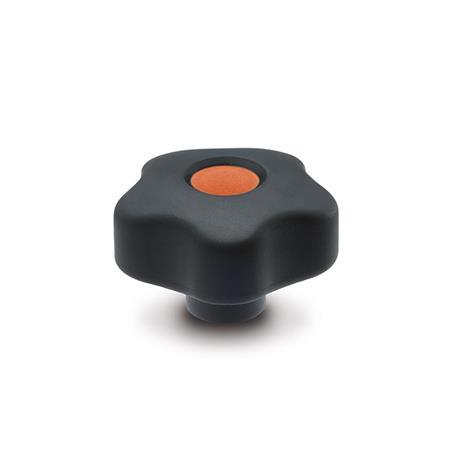

GN 5337.6 Softline Star Knobs, brushing in brass
ELESA original design VCT.SOFT
| d1 | d2 | d3 | h1 | h2 | t min. | |
|---|---|---|---|---|---|---|
| 43 | M 6 | M 8 | 17 | 29 | 11 | 12 |
| 53 | M 8 | M 10 | 19 | 34 | 13 | 17 |
| 66 | M 10 | M 12 | 21,5 | 38,5 | 15,5 | 17 |
| 77 | M 12 | - | 26 | 46 | 21 | 20 |
Filter combination produces no result.
Specification
Base body
Plastic
Technopolymer (Polypropylen PP)
Softline coating
Color of the cover cap:
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
Bushing
Brass
RoHS
Plastic
Technopolymer (Polypropylen PP)
Softline coating
- Elastomer (TPE) 70 Shore A
- Chemically bonded with base body
- FDA compliant plastic granulate
- Temperature resistant up to 80 °C
- Black, matte finish
Color of the cover cap:
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
Bushing
Brass
RoHS
Information
The softline coating makes the star knobs GN 5337.6 particularly user-friendly and ergonomic.
The soft, slip-proof contact area improves the contact both in hot (hand perspiration) and in dry ambient conditions, in the event of oily surfaces and even high or low temperatures.
The use of softline star knobs with threaded stud is recommended particularly when heavy duty clamping is required.
see also...
| How to order |
| ||||||
GN 5337.6-53-M10-DRT |
