Duroplast

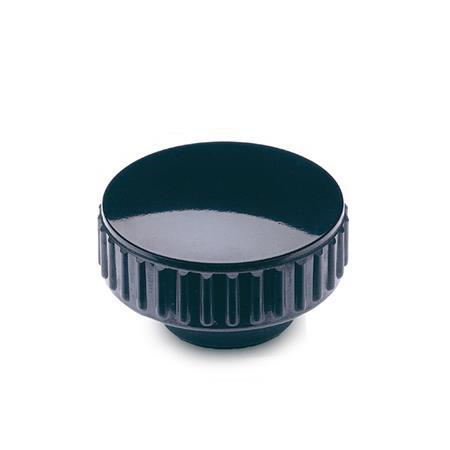

GN 530 Knurled Nuts, bushing brass
ELESA original design B.193
| d1 | d2 | d3 | h | k | t min. | ||
|---|---|---|---|---|---|---|---|
| 15 | M 3 | M 4 | M 5 | 11 | 11 | 9 | 6 |
| 18 | M 5 | - | - | 13 | 12 | 9 | 5 |
| 22 | M 6 | - | - | 15 | 14 | 10 | 6 |
| 25 | M 6 | - | - | 19 | 18 | 12 | 10 |
| 30 | M 8 | - | - | 24 | 18 | 12 | 10 |
| 40 | M 10 | - | - | 29 | 26 | 16 | 13 |
| 50 | M 10 | M 12 | - | 36 | 32 | 20 | 20 |
Filter combination produces no result.
Specification
Plastic
Duroplast (PF)
Bushing brass
RoHS
Duroplast (PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
Bushing brass
RoHS
On request
With threaded through hole
(with bushing brass)
(with bushing brass)
Information
The surface quality of the knurled nuts GN 530 is of a sufficiently high standard to meet the highest requirements. The flash mark is not visible.
Duroplast material is highly resistant to chemicals.
| How to order |
| ||||
GN 530-40-M10 |
