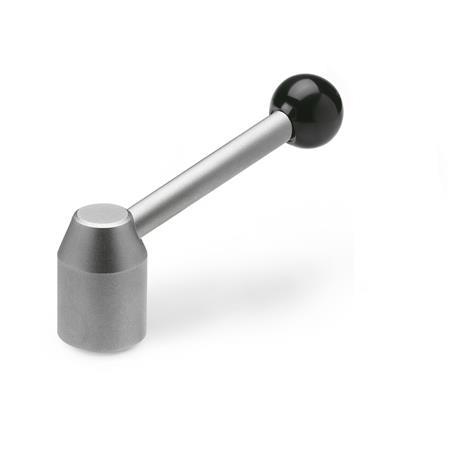

GN 212 Stainless Steel Tension Levers, matt shot blasted

E	Angled lever with thread

Show filter

d₁	d₂	d₄	d₅	h₁	h₂ ≈	l₁ ≈	l₂ ≈	t₁ min.

22	M 8	8	20	37	67	89,5	85	18
25	M 10	10	25	42	76	100,5	95	18
28	M 12	12	30	47	87	114	108	20
32	M 16	12	32	52	98	133	126	25

Filter combination produces no result.

Specification

Stainless steelNI AISI 303
Matte, shot-blasted

RoHS

Stainless steel tension levers GN 212 are used as clamping element as well as operating levers.

How to order

GN 212-25-M10-E-NI

RoHS compliant: Info

Weight:
