Steel / Aluminum

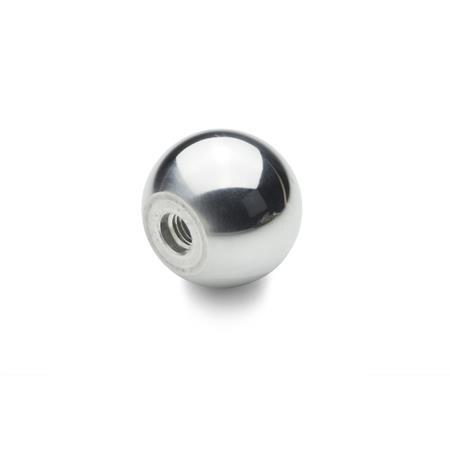

DIN 319 Ball Knobs
Type
| C | With thread |
| K | With Plain Hole H7 |
| d1 | d2 Type C Thread | d3 H7 Type K Bore | d4 ≈ | h ≈ | t1 min. | t2 min. |
|---|---|---|---|---|---|---|
| 16 | M 4 | B 6 | 8 | 15 | 7 | 9 |
| 20 | M 5 | B 8 | 12 | 18 | 9 | 11 |
| 25 | M 6 | B 10 | 15 | 22,5 | 11 | 14 |
| 32 | M 8 | B 12 | 18 | 29 | 14,5 | 17 |
| 40 | M 10 | B 16 | 22 | 37 | 18 | 22 |
| 50 | M 12 | B 20 | 27 | 46 | 21 | 28 |
Filter combination produces no result.
Specification
Information
Ball knobs DIN 319 made of steel and aluminum are not on the official DIN standard sheet.
| How to order |
| ||||||||
DIN 319-AL-40-M10-C |
