Steel Zinc Plated

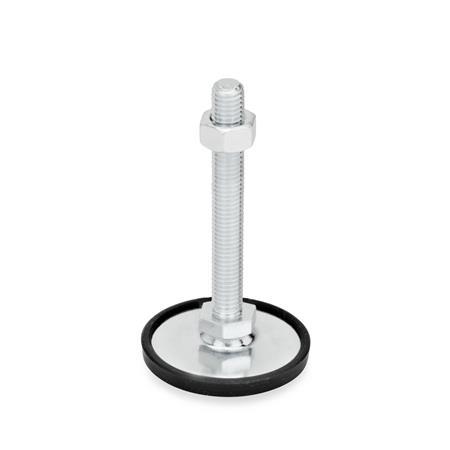

GN 40 Leveling Feet

Type (Base)

B0	Without rubber pad, with 2 mounting holes
A0	Without rubber pad
A1	With rubber pad, clipped on, black
A3	With rubber pad, vulcanized, black

Version (Screw)

S	Without nut, external hexagon at the bottom
SK	With nut, external hexagon at the bottom
U	Without nut, hexagon socket at the top and wrench flat at the bottom
UK	With nut, hexagon socket at the top and wrench flat at the bottom
X	External hexagon with internal thread

Show filter

d₁	d₂	l₁ Version S / SK				Version U / UK						l₇ Version X	d₃	h₁	h₆	m	s

40	M 8	40	50	63	-	-	-	-	-	-	-	25	5,4	2	3,5	30	1,5
40	M 10	50	60	80	100	-	-	-	-	-	-	28	5,4	2	3,5	30	1,5
40	M 12	60	80	100	125	-	-	-	-	-	-	31	5,4	2	3,5	30	1,5
40*	M 16	-	-	-	-	75	100	125	150	200	250	37	5,4	2	3,5	30	1,5
50	M 8	40	50	63	-	-	-	-	-	-	-	25	6,6	2,5	4	38	2
50	M 10	50	60	80	100	-	-	-	-	-	-	28	6,6	2,5	4	38	2
50	M 12	60	80	100	125	-	-	-	-	-	-	32	6,6	2,5	4	38	2
50	M 16	-	-	-	-	75	100	125	150	200	250	37	6,6	2,5	4	38	2
60	M 8	40	50	63	-	-	-	-	-	-	-	25	6,6	2,5	4,5	48	2
60	M 10	50	60	80	100	-	-	-	-	-	-	28	6,6	2,5	4,5	48	2
60	M 12	60	80	100	125	-	-	-	-	-	-	32	6,6	2,5	4,5	48	2
60	M 16	-	-	-	-	75	100	125	150	200	250	37	6,6	2,5	4,5	48	2
80	M 8	40	50	63	-	-	-	-	-	-	-	26	8,6	3	5	64	2
80	M 10	50	60	80	100	-	-	-	-	-	-	29	8,6	3	5	64	2
80	M 12	60	80	100	125	-	-	-	-	-	-	32	8,6	3	5	64	2
80	M 16	-	-	-	-	75	100	125	150	200	250	38	8,6	3	5	64	2
80	M 20	-	-	-	-	75	100	125	150	200	250	45	8,6	3	5	64	2
80	M 24	-	-	-	-	100	125	150	200	300	-	-	8,6	3	5	64	2

Filter combination produces no result.

d₁	d₂	h₃	h₄	A/F₁	A/F₂	A/F₃	A/F₇	t

40	M 8	11	-	17	-	-	14	8
40	M 10	11	-	17	-	-	14	10
40	M 12	11	-	17	-	-	17	12
40*	M 16	-	17	-	12	8	22	16
50	M 8	11	-	17	-	-	14	8
50	M 10	11	-	17	-	-	14	10
50	M 12	11	-	17	-	-	17	12
50	M 16	-	17	-	12	8	22	16
60	M 8	11	-	17	-	-	14	8
60	M 10	11	-	17	-	-	14	10
60	M 12	11	-	17	-	-	17	12
60	M 16	-	17	-	12	8	22	16
80	M 8	12	-	17	-	-	14	8
80	M 10	12	-	17	-	-	14	10
80	M 12	12	-	17	-	-	17	12
80	M 16	-	18	-	12	8	22	16
80	M 20	-	19	-	15	10	27	20
80	M 24	-	22	-	19	12	-	-

Filter combination produces no result.

* not available in type B0

Specification

Base plate
Steel, zinc plated, blue passivated

Threaded stem
Steel, zinc plated, blue passivated

Hexagon nut ISO 4032
Steel, zinc plated, blue passivated

Rubber underlay

clipped on
black, Santoprene® (TPE)
≈ 80 Shore A

Rubber underlay

vulcanized
black, Perbunan® (NBR)
70±5 Shore A

Elastomer Characteristics

Load rating of levelling feet GN 40 / GN 42

RoHS

Information

Leveling feet GN 40 can be used in a host of combinations of base plates and adjustable spindle versions.

The base plate with the rubber underlay protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface through two holes.

The leveling feet are supplied fully assembled and are not removable.
